Upgrade Performance GT/VNT 15-25 700625-0001 / 716111-0001 / 709835-0001 Billet Compressor wheels Mercedes-Benz / Perkins
Billet Compressor Wheel
The most popular current upgrade in the Turbocharger world is the use of Billet CompressorWheels.
Billet Compressor wheels or MFS Wheels (Manufactured from Solid) are made from a solid piece of alloy
(billet) . A CNC milling machine machines the wheel from a CAD program automatically from the CAD
design. There are many benefits to this type of wheel manufacture. Billet compressor wheels are far
stronger than a cast wheel due to being machine from a solid piece of material rather than via molten
material. Billet generally has less flaws. This extra strength allows the wheel blades and hub to be
thinner, increasing blade area resulting in increased air flow from a wheel with matching overall
dimensions.
DIMENSION
| BLADES |
A(mm) |
B(mm) |
C(mm) |
D(mm) |
E(mm) |
| 6/6 |
36.8 |
52 |
4.8 |
26 |
5.08 |
PRODUCT DETAILS
| Name |
Billet compressor wheels
|
|
Fit Turbo
|
700625-0001 700625-0002 716111-0001 709835-0001
709835-0002 709836-0001 709836-0003 709836-0004
711006-0001 711006-0003 726698-0001 726698-0002
726698-0003 778794-0001 704412-0001 452191-0004
452191-0005 452191-0006 452191-0007 452191-0008
452222-0002 452222-0003 452222-0004 452222-0006
452301-0001 452301-0003 727262-0002 727262-0003
727262-0004 727262-0006 727262-0007 727263-0001
727263-0002 727264-0003 727264-0004 727264-0005
727264-0006 727264-0007 727264-0008 727264-0009
727265-0001 727265-0002 727265-0003 727266-0001
727266-0002 727266-0003 454205-0001 454205-0006
|
|
MODEL
|
GT/VNT 15-25
|
|
SN NO.
|
436322-0003 / 436131-0003
|
|
MATERIAL
|
Aluminum Block
|
|
APPLICATION
|
Mercedes-Benz C class / Sprinter
Perkins
|
|
Engine NO.
|
6110960099 / 2674A393
|

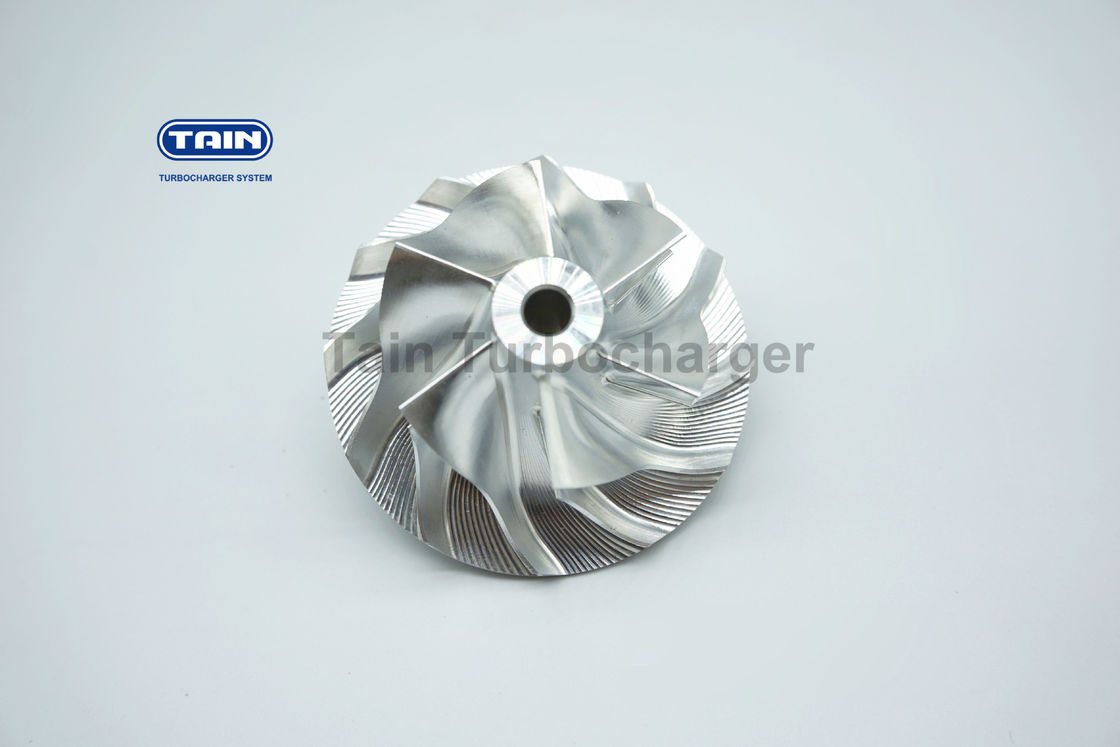

PRODUCT SHOW
WHAT WE SUPPLY
Tain supplies high performance turbo cartridges(CHRAS) and turbo kits to aftermarket worldwide.
Originally manufactured by Honeywell(Garrett),Borg Warner(KKK),MHI(Mitsubishi), IHI, Toyota, Holset.
Model cover :
Garrett: GT12,GT14,GT15-25,GT35,GT37,GT42,T2,T3,T04B-E
KKK: K03,K04,K14,K16,K24,K27,KP35,BV39,BV40,BV45,BV50
Schwitzer: S100,S1A,S1B,S200,S2A,S2B-E,S300,S3A,S3B,S400,S410
Holset: HX30(W),HX35(W),HX40(W),HX50(W),HX55(W),HE211(W),HE35V,HE40V,HE55V
IHI: RHB3,RHF3,RHF4,RHF5,
MHI: TC04,TC06,TD02,TD03,TD04,TD05,TD06,TF035
Toyota: CT9,CT12,CT12B,CT16,CT20,CT20B,CT26
