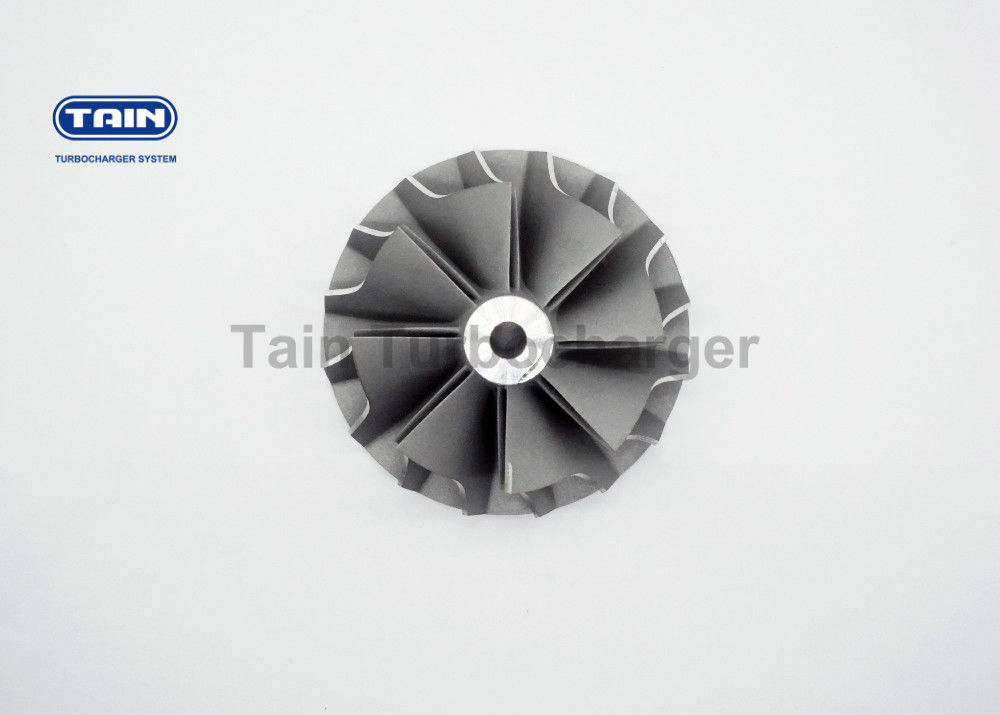

Turbocharger Compressor wheels for T04B39 409200 409860 Fit RenauIt / PERKINS
DETAILS
| Name |
Turbocharger compressor wheels
|
| Fit Turbo |
409200-0004 409200-0006 409761-0002
409860-0001 465118-0001
|
| MODEL |
T04B39
|
| SN |
409179-0025
|
| MATERIAL |
C355 T6
|
| APPLICATION |
RenauIt / PERKINS
|
| Balancing Test |
<5mg.mm / 5000RPM
|
DIMENSION
| WEIGHT(kg) |
A(mm) |
B(mm) |
C(mm) |
D(mm) |
E(mm) |
|
0.05
|
55.5
|
70.8
|
7.30 |
32.00 |
6.35
|
Compressor wheel is an important part of turbocharger.To some extents,the quality of compressor wheel will impact the performance of complete turbo.
The COMPRESSOR WHEEL has a complex structure.When it works,the speed is very high,and the tangential velocity of the rim is fast.Perhaps one of the most vital step at the first begining of the process is material: aluminum casting alloy.Tain use C355 alloy as material to ensure the quality and meet the requirement of market.
WHAT WE SUPPLY
Tain supplies high performance turbo cartridges(CHRAS) and turbo kits to aftermarket worldwide.
Originally manufactured by Honeywell(Garrett),Borg Warner(KKK),MHI(Mitsubishi), IHI, Toyota, Holset.
Model cover :
Garrett: GT12,GT14,GT15-25,GT35,GT37,GT42,T2,T3,T04B-E
KKK: K03,K04,K14,K16,K24,K27,KP35,BV39,BV40,BV45,BV50
Schwitzer: S100,S1A,S1B,S200,S2A,S2B-E,S300,S3A,S3B,S400,S410
Holset: HX30(W),HX35(W),HX40(W),HX50(W),HX55(W),HE211(W),HE35V,HE40V,HE55V
IHI: RHB3,RHF3,RHF4,RHF5,
MHI: TC04,TC06,TD02,TD03,TD04,TD05,TD06,TF035
Toyota: CT9,CT12,CT12B,CT16,CT20,CT20B,CT26
