TD025S2 49173-07503 49173-02800 Turbo Shaft And Wheels For CITROEN / FIAT / FORD / PEUGEOT
  • TD025S2 49173-07503 49173-02800 Turbo Shaft And Wheels For CITROEN / FIAT / FORD / PEUGEOT
  • TD025S2 49173-07503 49173-02800 Turbo Shaft And Wheels For CITROEN / FIAT / FORD / PEUGEOT

TD025S2 49173-07503 49173-02800 Turbo Shaft And Wheels For CITROEN / FIAT / FORD / PEUGEOT

Place of Origin China
Brand Name Tain Turbo
Certification ISO9001:2000
Model Number TD025S2
Product Details
Material:
K418+42CrMo
Model:
TD025S2
Fitted Turbo NO.:
49173-07502, 49173-07503 ,49173-07504, 49173-07506 49173-07507 49173-07508, 49173-07721, 49173-07730 ,49173-02800
Dimension:
37*27.66MM
Balancing Data:
< 5mg.mm / 30000RPM
Condition:
Brand New
High Light:

shaft wheel

,

turbine wheel

Payment & Shipping Terms
Minimum Order Quantity
1 pc
Packaging Details
Neutral package
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
10000 Pcs / Month
Product Description



TD025S2 49173-07503 49173-02800 Turbo Shaft And Wheels For CITROEN / FIAT / FORD / PEUGEOT



 PRODUCT  DETAILS

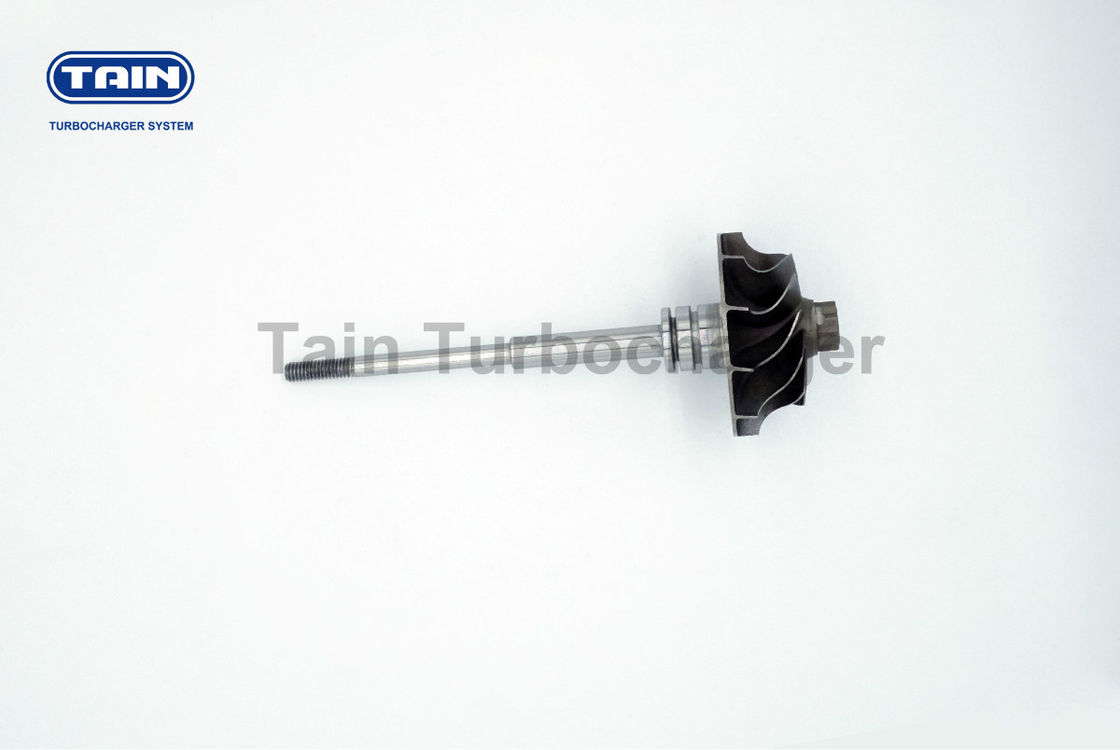

Turbine wheel shaft



The turbine wheel is one of the most important parts of a turbocharger.It is resposible to transform the energy from an engine’s exhaust gases into kinetic energy.As the turbine wheel rotates, it spins the turbine shaft, which in turn spins the compressor wheel.

When it works,it always be in a high temperatureenvironment.So the only material can be selected to manufacturer .turbine wheel is the Inconel austenitic

nickel-chromium-iron alloy,a high strength investment casting.The materials now in wide use is K418.

♦ DIMENSION
BLADE A(mm) B(mm) C(mm) D(mm) E(mm)
11 37 27.66 4.58 6.00 4.00

TD025S2 49173-07503 49173-02800 Turbo Shaft And Wheels For CITROEN / FIAT / FORD / PEUGEOT 0



♦Application :



  • CITROEN
  • FIAT
  • FORD
  • PEUGEOT



♦Model :TD025S2





♦ Fitted turbo No. :



49173-07502 49173-07503 49173-07504 49173-07506 49173-07507 49173-07508 49173-07721 49173-07730 49173-02800

♦ Material : K418+42CrMo
♦ Balancing Test : < 5mg.mm / 30000RPM

Balanced Individual Piece (Recommend Assembly and Cartridge Balancing With Your Compressor Wheel )





♦ Package : anti-rust paper + plastic bag + PE foam + corrugated box
