IVECO DAILY IV 2.3TD 100KW 9 Blades Turbine Wheel GT1752VL 769040-0001 K418+42CrMo
  • IVECO DAILY IV 2.3TD 100KW 9 Blades Turbine Wheel GT1752VL 769040-0001 K418+42CrMo
  • IVECO DAILY IV 2.3TD 100KW 9 Blades Turbine Wheel GT1752VL 769040-0001 K418+42CrMo

IVECO DAILY IV 2.3TD 100KW 9 Blades Turbine Wheel GT1752VL 769040-0001 K418+42CrMo

Place of Origin China
Brand Name Tain Turbo
Certification ISO9001:2000
Model Number GT1752VL
Product Details
Material:
K418+42CrMo
Model:
GT1752VL
Fitted Turbo NO.:
769040-0001
Dimension:
43*39.5MM
Balancing Data:
< 5mg.mm / 30000RPM
Condition:
Brand New
High Light:

shaft wheel

,

turbine wheel

Payment & Shipping Terms
Minimum Order Quantity
1 pc
Packaging Details
Neutral package
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
10000 Pcs / Month
Product Description



IVECO DAILY IV 2.3TD 100KW 9 Blades Turbine Wheel GT1752VL 769040-0001 K418+42CrMo





 PRODUCT  DETAILS

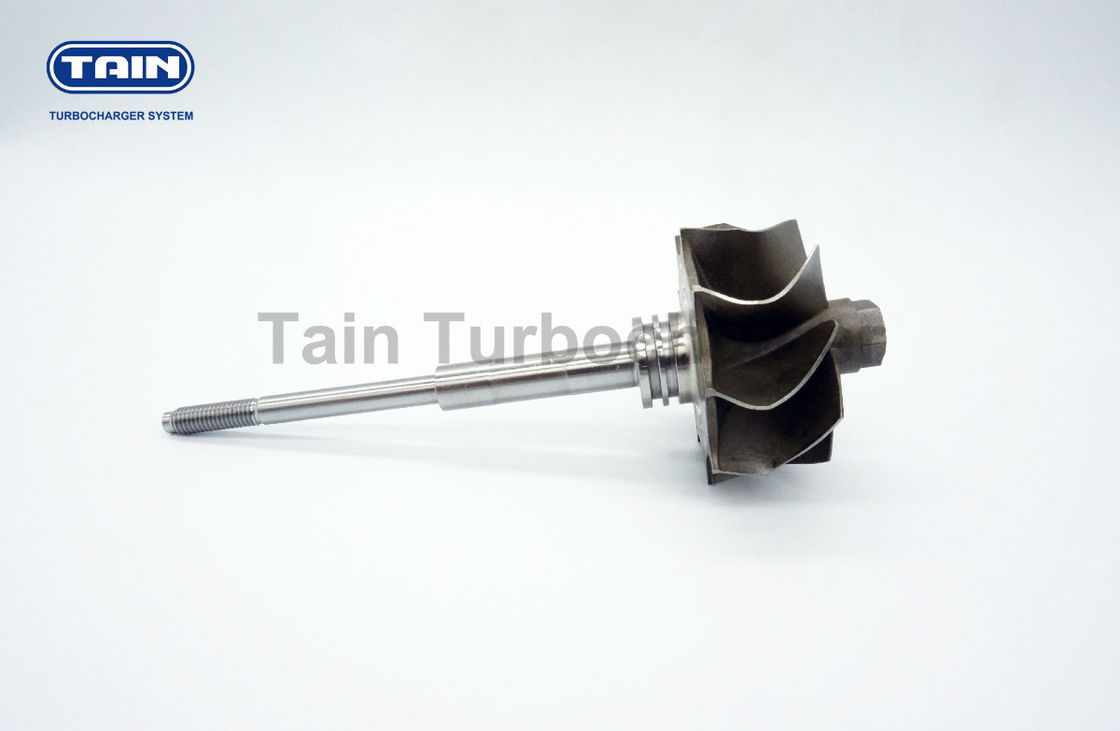

Turbine wheel shaft



The turbine wheel is one of the most important parts of a turbocharger.It is resposible to transform the energy from an engine’s exhaust gases into kinetic energy.As the turbine wheel rotates, it spins the turbine shaft, which in turn spins the compressor wheel.

When it works,it always be in a high temperatureenvironment.So the only material can be selected to manufacturer .turbine wheel is the Inconel austenitic

nickel-chromium-iron alloy,a high strength investment casting.The materials now in wide use is K418.

♦ DIMENSION
BLADE A(mm) B(mm) C(mm) D(mm) E(mm)
9 43 39.5 8.50 7.88 5.08

IVECO DAILY IV 2.3TD 100KW 9 Blades Turbine Wheel GT1752VL 769040-0001 K418+42CrMo 0



♦Application :



IVECO DAILY IV 2.3TD 100KW 2006-2011



♦Model : GT1752VL





♦ Fitted turbo No. :



769040-0001

♦ Material : K418+42CrMo
♦ Balancing Test : < 5mg.mm / 30000RPM

Balanced Individual Piece (Recommend Assembly and Cartridge Balancing With Your Compressor Wheel )





♦ Package : anti-rust paper + plastic bag + PE foam + corrugated box





WHO WE ARE


Tain turbo is a specialized turbocharger and turbo parts manufacturer in Wuxi,China.

Established in 1997,covering over 4000 square meters.Tain devote ourselves to offer the best service.Tain currently supply more than 1000 types of cartridges and also other turbo parts.



Tain is not just a manufacturer,but also a supplier of customized OEM products .Thanks to our professional technicians and years of experience,Tain wins a good reputation,high evaluation among our customers.



  OTHER    MODELS    WE    SUPPLY

Garrett: GT12,GT14,GT15-25,GT35,GT37,GT42,T2,T3,T04B-E



KKK: K03,K04,K14,K16,K24,K27,KP35,BV39,BV40,BV45,BV50



Schwitzer: S100,S1A,S1B,S200,S2A,S2B-E,S300,S3A,S3B,S400,S410



Holset:





HX30(W),HX35(W),HX40(W),HX50(W),HX55(W),HE211(W),HE35V,HE40V,HE55V



IHI: RHB3,RHF3,RHF4,RHF5



MHI: TC04,TC06,TD02,TD03,TD04,TD05,TD06,TF035



Toyota: CT9,CT12,CT12B,CT16,CT20,CT20B,CT26
