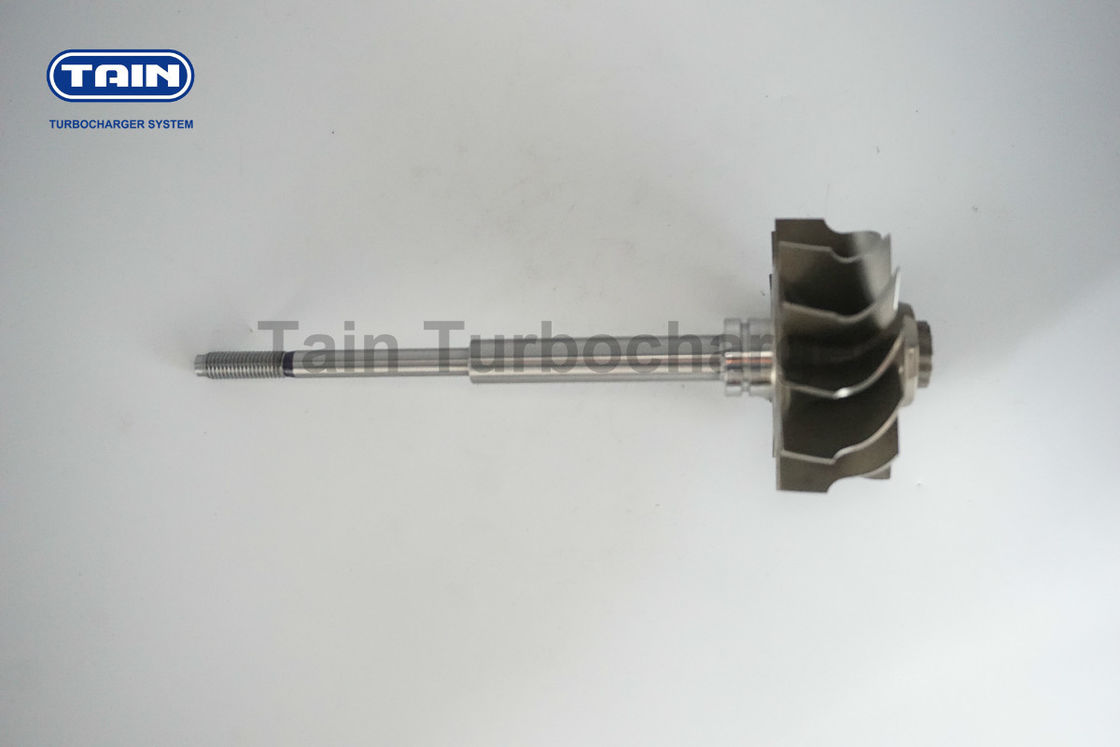

TD04HL / HX27 Turbine Wheel Shaft 52* 45.7mm fit turbo 49189-02100 / 2841579
  • TD04HL / HX27  Turbine Wheel Shaft  52* 45.7mm fit turbo 49189-02100 / 2841579
  • TD04HL / HX27  Turbine Wheel Shaft  52* 45.7mm fit turbo 49189-02100 / 2841579

TD04HL / HX27 Turbine Wheel Shaft 52* 45.7mm fit turbo 49189-02100 / 2841579

Place of Origin China
Brand Name Tain Turbo
Certification ISO9001:2000
Model Number T004
Product Details
Material:
K418+42CrMo
Model:
TD04
Fit Turbo:
2834997 / 2835000 / 2841579
Dimension:
52 / 45.7 / 5.00
Balancing Data:
< 5mg.mm / 30000RPM
SN No.:
TW 272
High Light:

shaft wheel

,

turbine wheel

Payment & Shipping Terms
Minimum Order Quantity
1 pc
Packaging Details
Natural package
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
10000 Pcs / Month
Product Description



 Turbine wheel shaft 52* 45.7mm 12 blades TD04HL / HX27 49189-02100  3599243  for Iveco

  TURBINE     WHEEL     SHAFT



The turbine wheel is one of the most important parts of a turbocharger.It is resposible to transform the



energy from an engine’s exhaust gases into kinetic energy.As the turbine wheel rotates, it spins the



turbine shaft, which in turn spins the compressor wheel.When it works,it always be in a high temperature



environment.So the only material can be selected to manufacturer turbine wheel is the Inconel austenitic



nickel-chromium-iron alloy,a high strength investment casting.The materials now in wide use is K418.



PRODUCT DETAILS

Balanced Individual Piece (Recommend Assembly and Cartridge Balancing With Your Compressor Wheel )

►Model : TD04 / HX27
►Fitted Turbocharger :
2834004 2834998 2835001 2835002
3538834 3538835 3590068 3593371
3595527 3596066 3596223 3596596
3597604 3597938 3598012 3598724
3598867 3599243 4035394 4035307
49189-02100 49189-02110 49189-02200 49189-02300
49189-03300 49189-03310 49189-01330 49189-01335
49189-01350 49189-01355 49189-01450 49189-01455





►Material : K418+42CrMo

►Condition : Professional installation highly recommended.
                                   Boost engine horse power significantly.
                                   Increase engine power and torque output
                                   Constructed with high quality material.
                                    Built for durability and strength.
                                   Professional auto part.
                                   Powerful and reliable.
►Application :  Industrial  / Cummins  engine / Komatsu/ Iveco
►Balancing Test : < 5mg.mm / 30000RPM
►Package : anti-rust paper + plastic bag + PE foam + corrugated box
►DIMENSION
WEIGHT(KG) A(mm) B(mm) C(mm) D(mm) E(mm)
0.11 52.0 45.7 8.2 7.50 5.00

Turbine wheel shaft  MITSUBISHI TD03-07T  40* 35.2mm 11blades 49131  S80 XC turbine wheels







  WHO   WE   ARE


Tain turbo is a specialized turbocharger and turbo parts manufacturer in Wuxi,China.

Established in 1997,covering over 4000 square meters.

Tain devote ourselves to offer the best service.Tain currently supply more than 1000 types of cartridges

and also other turbo parts.

Tain is not just a manufacturer,but also a supplier of customized OEM products.Thanks to our

professional technicians and years of experience.

Tain wins a good reputation,high evaluation among our customers.


PACKING INFORMATION


Inner packing: anti-rust paper,plastic bag,PE foam.

Outer packing: Neutral box,export carton with cushioning and shock proof packaging.

Supply customized package.
