Turbine Wheel Shaft
>
|
| Place of Origin | China |
| Brand Name | Tain Turbo |
| Certification | ISO9001:2000 |
| Model Number | GT/VNT 15-25 |

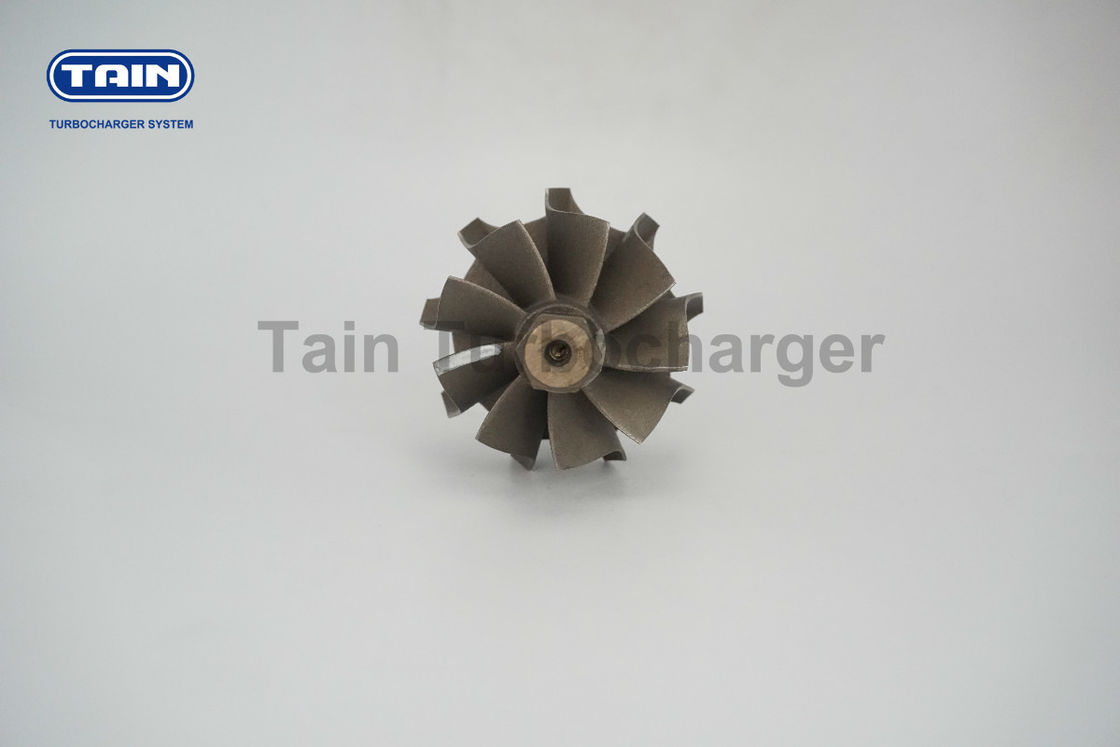

GARRETT 43* 36MM 9blades GT/VNT15-25 454158-0001 700447-0001 Audi IVW turbine wheel
The turbine wheel is one of the most important parts of a turbocharger.It is resposible to transform the
energy from an engine’s exhaust gases into kinetic energy.As the turbine wheel rotates, it spins the
turbine shaft, which in turn spins the compressor wheel.When it works,it always be in a high temperature
environment.So the only material can be selected to manufacturer turbine wheel is the Inconel austenitic
nickel-chromium-iron alloy,a high strength investment casting.The materials now in wide use is K418.
|
Name |
turbine wheel, turbo shaft wheel, shaft&wheel |
|
Model |
GT/VNT 15-25 |
|
Fit turbocharger |
454158-0001 454158-0003 454161-0001 454183-0001
454195-0001 454231-0001 454232-0001 454232-0003
454232-0005 700447-0001 700447-0003 700447-0004
700447-0005 701854-0001 768329-0001 768331-0001
454231-0003 454231-0004 454231-0007 704505-0001
|
|
SN No. |
433257-0010 |
|
Material |
K418+42CrMo |
|
Application |
Audi A4 TDI
Volkswagen Passat TDI
|
|
Balancing Test |
< 5mg.mm / 30000RPM |
|
WEIGHT(KG) |
A(mm) | B(mm) | C(mm) | D(mm) | E(mm) |
|
0.11 |
43 | 36 | 5.9 | 7.88 | 5.08 |
suitable chra
Turbocharger cartridge GT17 / VNT15 454158-0001/ 454158-0003 /454161-0001/454161-0003 / 433395-004 Application for Audi A4 / A6 TDI # Volkswagen Passat TDI / Golf TDI / Polo TDI # Seat Toledo Tdi
TECHNICIAL TEAM
Our technical team was composed by one advanced engineer with 15 years experience and four
engineers who are very professional in this field. They are familiar with turbocharger system and product
structure and dimension. They are mainly responsible for source selection,quality control,dimension
inspection and product development.Thanks to them,currently we can supply over 300 types of turbo
chras and always keep our producs quality in a high level.
1, We have a professional QC team to control the quality from material to finished products
2, We have advanced equipment to promise the product performance
3, We have over 400 types of turbo chras to meet customers’ requirements
4, We have huge stock to promise the lead time
5, Welcome to inquire,you will receive the feedback within 24 hours
