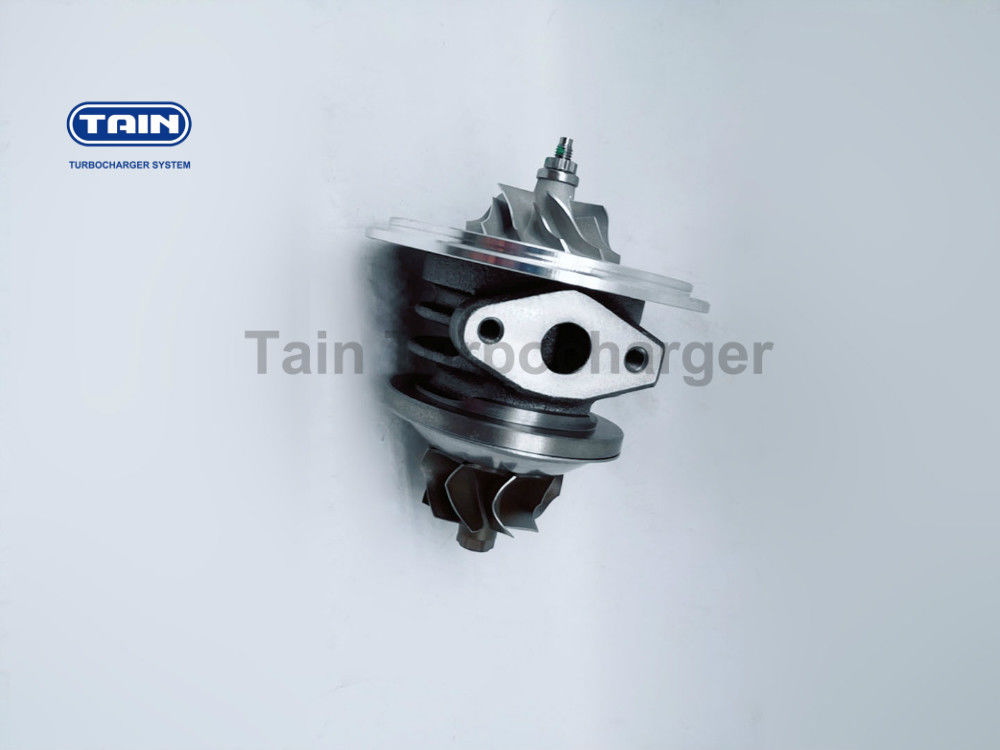

GT1544S Turbo Chra 454080-0001 703753-0001 For Fiat Brava / RenauIt Megane
Turbine wheels & compressor wheels size information
| Turbine Wheels |
|
|
| (A) Inducer |
(B) Exducer |
Blades |
| 41.4 |
35 |
9 |
| Compressor Wheels |
|
|
| (A) Inducer |
(B) Exducer |
Blades |
| 32.8 |
44 |
6/6
|
►TURBO NO. :
454080-0001 454080-0002 454080-0004 454165-0001
700830-0001 700830-0003 700999-0001 701000-0001
701796-0001 702339-0001 703753-0001
► Turbo Model :
GT1544S
► CHRA NO. :
433289-0009 / 433289-0061 / 433289-0065
►OE NO. :
7777690 , 7700872574 ,7700707795 , 7700108030 , 8601640 , 7700111747
►APPLICATION :
Fiat Punto TD 1.9L 75KW 1996 M.720 BT.19.T
RenauIt Megane I 1.9L 92HP 1997 F8Q730
RenauIt Laguna I DTI 1.9L F9Q730 ECO
S40 / V40 1.9L 94HP F9Q 730
WHAT WE SUPPLY
Tain supplies high-performance turbo cartridges(CHRAS) and turbo parts to aftermarket worldwide.
Originally manufactured by Honeywell(Garrett), BorgWarner(KKK), MHI(Mitsubishi), IHI, Toyota, Holset.
Model cover :
Garrett: GT12,GT14,GT15-25,GT35,GT37,GT42,T2,T3,T04B-E etc .
KKK: K03,K04,K14,K16,K24,K27,KP35,BV39,BV40,BV45,BV50 etc .
Schwitzer: S100,S1A,S1B,S200,S2A,S2B-E,S300,S3A,S3B,S400,S410 etc .
Holset: HX30(W),HX35(W),HX40(W),HX50(W),HX55(W),HE211(W),HE35V,HE40V,HE55V etc .
IHI: RHB3,RHF3,RHF4,RHF5 etc .
MHI: TC04,TC06,TD02,TD03,TD04,TD05,TD06,TF035 etc .
Toyota: CT9,CT12,CT12B,CT16,CT20,CT20B,CT26 etc .
