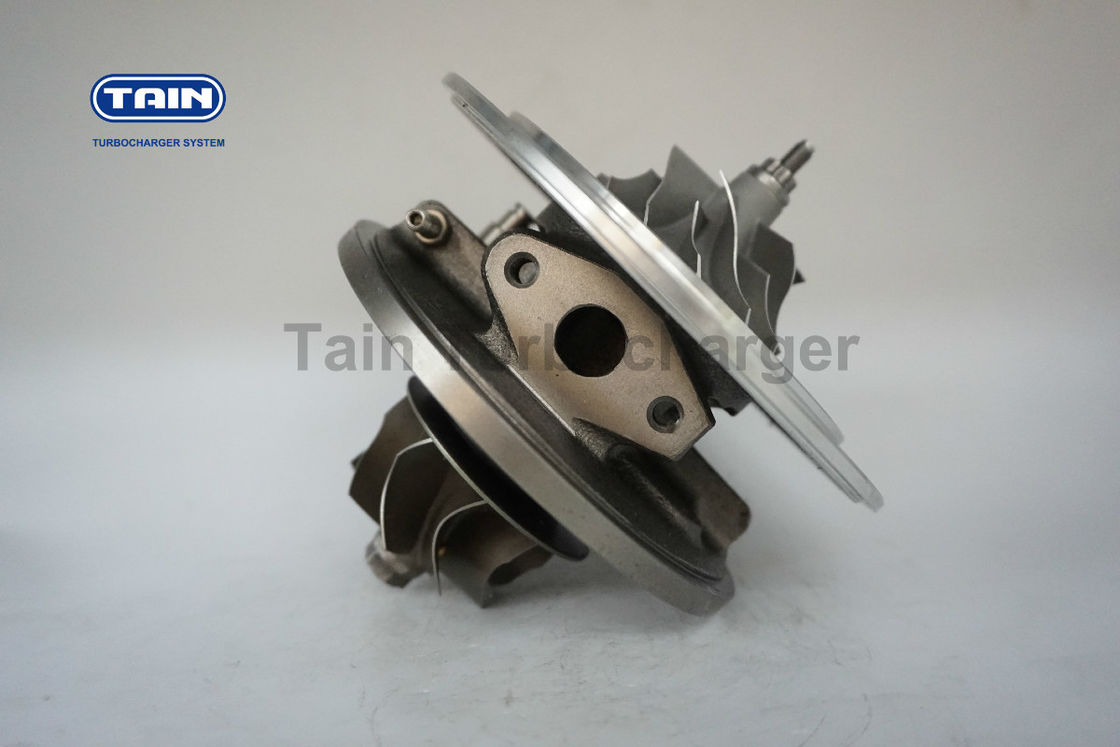

Turbocharger Cartridge
>
|
| Place of Origin | China |
| Brand Name | Tain turbo |
| Certification | ISO9001:2000 |
| Model Number | GT2556V |
DESCRIPTION
—— Model :
GT2556V
—— Turbo No. :
454191-0008 , 454191-0009 , 454191-0010
454191-0011 , 454191-0012
—— OE NO. :
—— Balancing Test :
<0.5Mg.mm / 150000RPM
—— Condition:
Brand new
—— Fitted Cars :
—— Material
turbine wheel: K418
compressor wheel: C355
bearing house: HT250 Gray iron
| Turbine Wheels | ||
| (A) Inducer | (B) Exducer | Blades |
| 50 | 45.85 | 9 |
| Compressor Wheels | ||
| (A) Inducer | (B) Exducer | Blades |
| 41.6 | 56 | 6/6 |
Tain supplies high performance turbo cartridges(CHRAS) and turbo kits to aftermarket worldwide.
Originally manufactured by Honeywell(Garrett),BorgWarner(KKK),MHI(Mitsubishi), IHI, Toyota, Holset.
Model cover :
Garrett: GT12,GT14,GT15-25,GT35,GT37,GT42,T2,T3,T04B-E
KKK: K03,K04,K14,K16,K24,K27,KP35,BV39,BV40,BV45,BV50
Schwitzer: S100,S1A,S1B,S200,S2A,S2B-E,S300,S3A,S3B,S400,S410
Holset:
HX30(W),HX35(W),HX40(W),HX50(W),HX55(W),HE211(W),HE35V,HE40V,HE55V
IHI: RHB3,RHF3,RHF4,RHF5,
MHI: TC04,TC06,TD02,TD03,TD04,TD05,TD06,TF035
Toyota: CT9,CT12,CT12B,CT16,CT20,CT20B,CT26
Our technical team was composed by one advanced engineer with 15 years
experience engineers and four engineers who are very professional in this field.
They are familiar with turbocharger system and product structure and dimension.
They are mainly responsible for source selection,quality control,dimension
inspection and product development.Thanks to them,currently we can supply over
300 types of turbochras and always keep our products quality in a high level.
