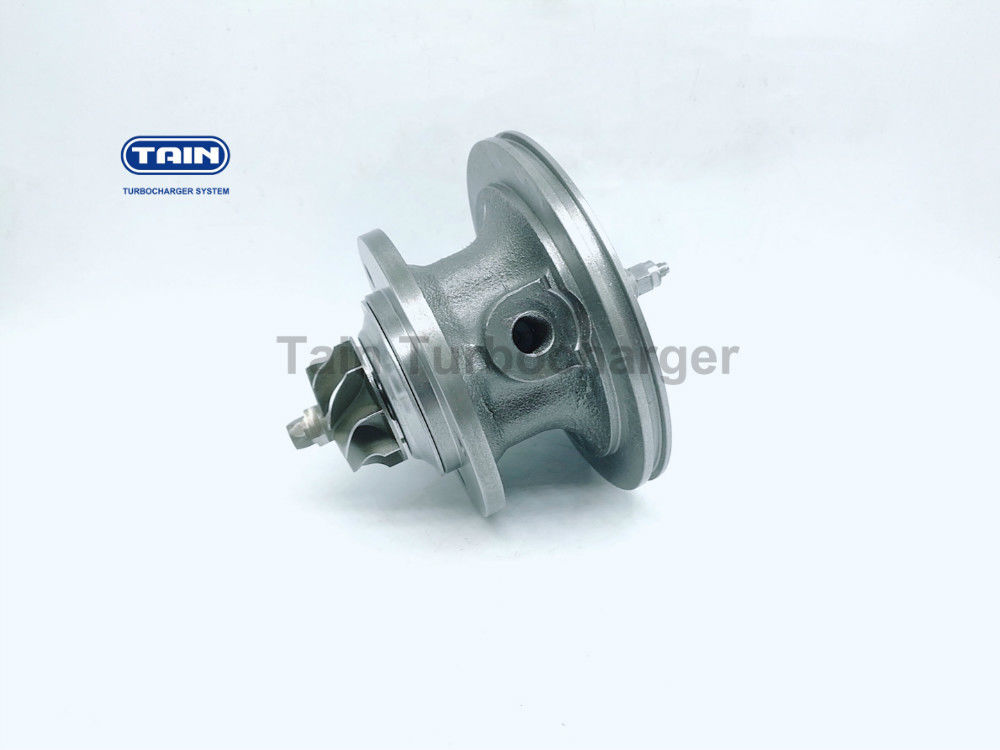

KP35 Turbocharger Cartridge 54359700009 54359700003 375G9 Chra FORD , PEUGEOT , MAZDA , CITROEN
DESCRIPTION
—— Model :
KP35
—— Turbo No. :
54359700001 54359700003 54359700007
54359700009 54359700021 54359710009
—— CHRA No. :
5435-710-0501
—— OE NO. :
0375G9 , 0375K0 , 375G9 , 9648759980 , 2S6Q6K682AB
—— Balancing Test :
<0.5Mg.mm / 150000RPM
—— Condition:
Brand new
—— Fitted Cars :
Tata passenger Car 1.4L 50KW 2001 475IDITCIC
Citroen C2 / C3 1.4L DV4TD
Ford Fiesta / Fusion 1.4L 50KW DV4TD
Mazda 2 1.4L 50KW DV4TD
PEUGEOT 1007 / 206 / 207 / 307 1.4L 50KW DV4TD
—— Material
turbine wheel: K418
compressor wheel: C355
bearing house: HT250 Gray iron
Turbine wheels & compressor wheels size information
| Turbine Wheels |
|
|
| (A) Inducer |
(B) Exducer |
Blades |
| 34.7 |
29.15 |
9 |
| Compressor Wheels |
|
|
| (A) Inducer |
(B) Exducer |
Blades |
| 27.35 |
37 |
5/5 |
OTHER MODELS WE SUPPLY
Tain supplies high performance turbo cartridges(CHRAS) and turbo kits to aftermarket worldwide.
Originally manufactured by Honeywell(Garrett),BorgWarner(KKK),MHI(Mitsubishi), IHI, Toyota, Holset.
Model cover :
Garrett: GT12,GT14,GT15-25,GT35,GT37,GT42,T2,T3,T04B-E
KKK: K03,K04,K14,K16,K24,K27,KP35,BV39,BV40,BV45,BV50
Schwitzer: S100,S1A,S1B,S200,S2A,S2B-E,S300,S3A,S3B,S400,S410
Holset:
HX30(W),HX35(W),HX40(W),HX50(W),HX55(W),HE211(W),HE35V,HE40V,HE55V
IHI: RHB3,RHF3,RHF4,RHF5,
MHI: TC04,TC06,TD02,TD03,TD04,TD05,TD06,TF035
Toyota: CT9,CT12,CT12B,CT16,CT20,CT20B,CT26
TIAN TECHNICIAL TEAM
Our technical team was composed by one advanced engineer with 15 years
experience engineers and four engineers who are very professional in this field.
They are familiar with turbocharger system and product structure and dimension.
They are mainly responsible for source selection,quality control,dimension
inspection and product development.Thanks to them,currently we can supply over
300 types of turbochras and always keep our products quality in a high level.
