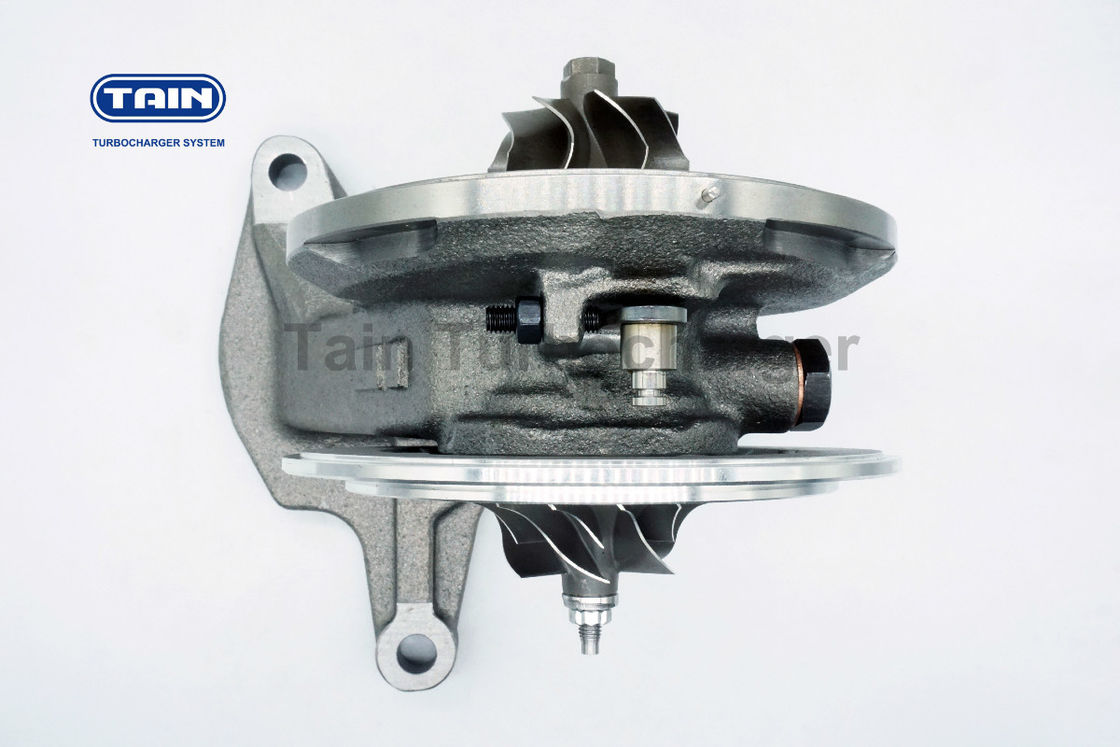

Turbocharger Cartridge GTB1749V 760698-5005S chra 07014570RV220 Volkswagen T5 Bus
—— Model :
GTB1749V
—— Turbo No. :
760698-0002 760698-0003 760698-0004
760698-0005 760698-0006 760698-5004S
— — OEM No. :
07014570RV220 , 07014570RV204 , 07014570RV210 , 070145701R
—— Balancing Test :
<0.5Mg.mm / 150000RPM
—— Condition:
Brand new
—— Fitted Cars :
Volkswagen T5 Bus / Transporter 2.5L 96KW R5 TDi Euro4
—— Material
turbine wheel: K418
compressor wheel: C355
bearing house: HT250 Gray iron
Turbine wheels & compressor wheels size information
| Turbine Wheels |
|
|
| (A) Inducer |
(B) Exducer |
Blades |
| 43 |
37.56 |
9 |
| Compressor Wheels |
|
|
| (A) Inducer |
(B) Exducer |
Blades |
| 36.4 |
49 |
6/6 |
OTHER MODELS WE SUPPLY
Tain supplies high performance turbo cartridges(CHRAS) and turbo kits to aftermarket worldwide.
Originally manufactured by Honeywell(Garrett),BorgWarner(KKK),MHI(Mitsubishi), IHI, Toyota, Holset.
Model cover :
Garrett: GT12,GT14,GT15-25,GT35,GT37,GT42,T2,T3,T04B-E
KKK: K03,K04,K14,K16,K24,K27,KP35,BV39,BV40,BV45,BV50
Schwitzer: S100,S1A,S1B,S200,S2A,S2B-E,S300,S3A,S3B,S400,S410
Holset:
HX30(W),HX35(W),HX40(W),HX50(W),HX55(W),HE211(W),HE35V,HE40V,HE55V
IHI: RHB3,RHF3,RHF4,RHF5,
MHI: TC04,TC06,TD02,TD03,TD04,TD05,TD06,TF035
Toyota: CT9,CT12,CT12B,CT16,CT20,CT20B,CT26
TIAN TECHNICIAL TEAM
Our technical team was composed by one advanced engineer with 15 years
experience engineers and four engineers who are very professional in this field.
They are familiar with turbocharger system and product structure and dimension.
They are mainly responsible for source selection,quality control,dimension
inspection and product development.Thanks to them,currently we can supply over
300 types of turbochras and always keep our products quality in a high level.
