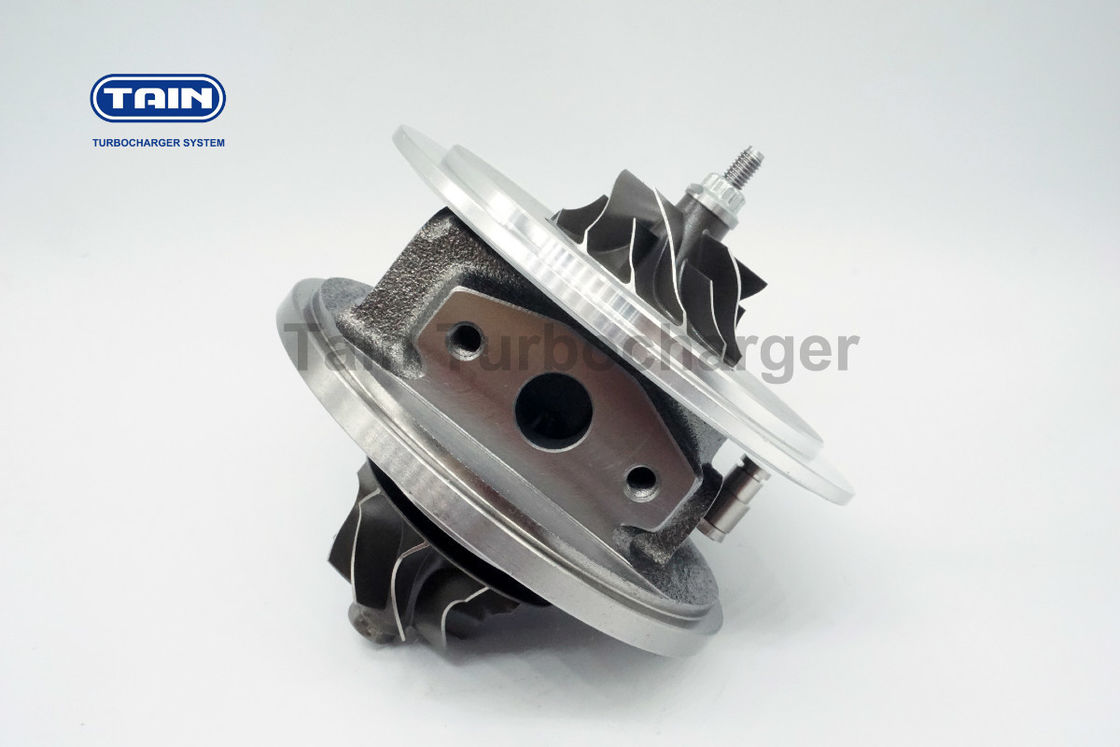

Turbocharger Cartridge
>
|
| Place of Origin | China |
| Brand Name | Tain turbo |
| Certification | ISO9001:2000 |
| Model Number | GTA1749V |
DESCRIPTION
—— Model :
GTA1746V
—— Turbo No. :
760680-0002 760680-0003 760680-0004 760680-0005
761618-0001 761618-0002 761618-0003 761618-5003S
760680-0001
—— OE NO. :
8200506509B ,8200683856 , 8200732948A ,8200683856 ,8200732948A,8200494545 ,13900-67JH1
—— Balancing Test :
<0.5Mg.mm / 150000RPM
—— Condition:
Brand new
—— Fitted Cars :
Suzuki Grand Vitara 1.9L 95KW F9Q 264
Suzuki Grand Vitara DDis 1.9L 95KW@3750 F9Q 264
Suzuki Grand Vitara 1.9L 95KW F9Q 264-266
—— Material
turbine wheel: K418
compressor wheel: C355
bearing house: HT250 Gray iron
| Turbine Wheels | ||
| (A) Inducer | (B) Exducer | Blades |
| 43 | 35.1 | 9 |
| Compressor Wheels | ||
| (A) Inducer | (B) Exducer | Blades |
| 35.6 | 46 | 6/6 |
Tain supplies high performance turbo cartridges(CHRAS) and turbo kits to aftermarket worldwide.
Originally manufactured by Honeywell(Garrett),BorgWarner(KKK),MHI(Mitsubishi), IHI, Toyota, Holset.
Model cover :
Garrett: GT12,GT14,GT15-25,GT35,GT37,GT42,T2,T3,T04B-E
KKK: K03,K04,K14,K16,K24,K27,KP35,BV39,BV40,BV45,BV50
Schwitzer: S100,S1A,S1B,S200,S2A,S2B-E,S300,S3A,S3B,S400,S410
Holset:
HX30(W),HX35(W),HX40(W),HX50(W),HX55(W),HE211(W),HE35V,HE40V,HE55V
IHI: RHB3,RHF3,RHF4,RHF5,
MHI: TC04,TC06,TD02,TD03,TD04,TD05,TD06,TF035
Toyota: CT9,CT12,CT12B,CT16,CT20,CT20B,CT26
Our technical team was composed by one advanced engineer with 15 years
experience engineers and four engineers who are very professional in this field.
They are familiar with turbocharger system and product structure and dimension.
They are mainly responsible for source selection,quality control,dimension
inspection and product development.Thanks to them,currently we can supply over
300 types of turbochras and always keep our products quality in a high level.
