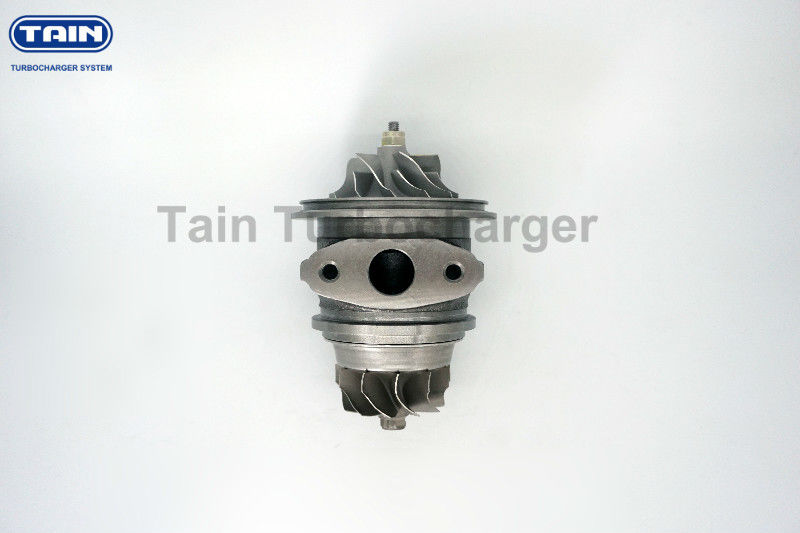

Turbocharger Cartridge 49131-06001 49131-06003 49131-08501 8973000925 Chra
DESCRIPTION
—— Model : TD03L4-07T
—— Turbo No. :
49131-06001 49131-06003 49131-06004
49131-06006 49131-06007 49131-06008
—— Chra No.:
49131-08501
—— OE No.:
8973000925,8973000926 ,860147, 93169104 , 8973000923 ,8981023640
—— Balancing Test :
<0.5Mg.mm / 150000RPM
—— Condition:
Brand new
—— Fitted Cars :
Opel Corsa / Astra / Meriva 1.7L 74KW Z17DTH
Isuzu-Poland opel 1.7 CDTI 1.7L P720DTH (Z17DH)
——Turbine wheels & compressor wheels size information
| Turbine Wheels |
|
|
| (A) Inducer |
(B) Exducer |
Blades |
| 40.2 |
35.1 |
11 |
| |
|
|
| Compressor Wheels |
|
|
| (A) Inducer |
(B) Exducer |
Blades |
| 44 |
32 |
6/6 |
—— Material
turbine wheel: K418
compressor wheel: C355
bearing house: HT250 Gray iron
OTHER MODELS WE SUPPLY
Tain supplies high performance turbo cartridges(CHRAS) and turbo kits to aftermarket worldwide.
Originally manufactured by Honeywell(Garrett),BorgWarner(KKK),MHI(Mitsubishi), IHI, Toyota, Holset.
Model cover :
Garrett: GT12,GT14,GT15-25,GT35,GT37,GT42,T2,T3,T04B-E
KKK: K03,K04,K14,K16,K24,K27,KP35,BV39,BV40,BV45,BV50
Schwitzer: S100,S1A,S1B,S200,S2A,S2B-E,S300,S3A,S3B,S400,S410
Holset:
HX30(W),HX35(W),HX40(W),HX50(W),HX55(W),HE211(W),HE35V,HE40V,HE55V
IHI: RHB3,RHF3,RHF4,RHF5,
MHI: TC04,TC06,TD02,TD03,TD04,TD05,TD06,TF035
Toyota: CT9,CT12,CT12B,CT16,CT20,CT20B,CT26
TIAN TECHNICIAL TEAM
Our technical team was composed by one advanced engineer with 15 years experience engineers and four engineers who are very professional in this field. They are familiar with turbocharger system and product structure and dimension.
They are mainly responsible for source selection,quality control,dimension inspection and product development.Thanks to them,currently we can supply over 300 types of turbochras and always keep our products quality in a high level.
