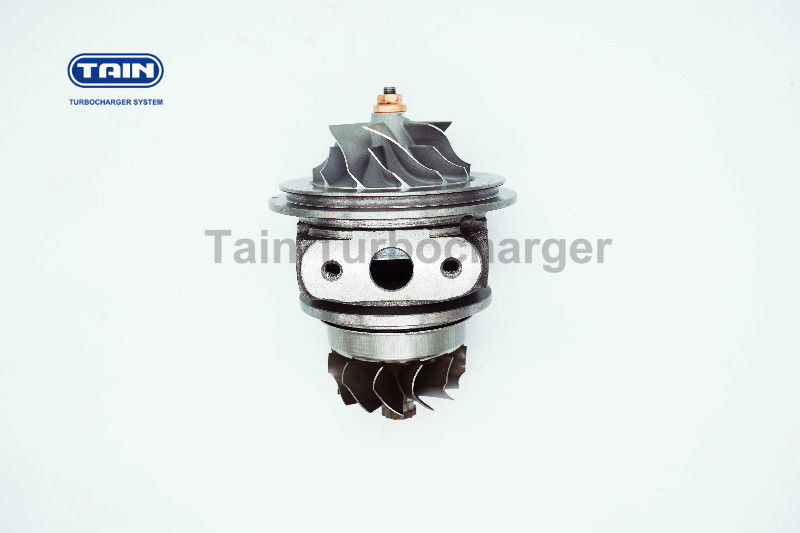

Turbochrager Chra 49189-01330 1515A054 850R
DESCRIPTION
—— Model : TD04HL-16T
—— Turbo No. :
49189-01330 49189-01335 49189-01350 49189-01355
49189-01450 49189-01455 49189-05000 49189-05010
49189-05100 49189-05101 49189-05102 49189-05111
49189-05112
—— Chra No.:
49189-08535
—— OE No.:
1270536 ,MR340962,8601238 , MR340961,8601226,1515A054
—— Balancing Test :
<0.5Mg.mm / 150000RPM
—— Condition:
Brand new
—— Fitted Cars :
850R /S70R / V70R/ T5 / V70AWD 2.3L B5234 HT T3/T5/T6 N2P23HT
——Turbine wheels & compressor wheels size information
| Turbine Wheels |
|
|
| (A) Inducer |
(B) Exducer |
Blades |
| 52.1 |
45.65 |
12 |
| |
|
|
| CompressorWheels |
|
|
| (A) Inducer |
(B) Exducer |
Blades |
| 43.4 |
56 |
6/6 |
—— Material
turbine wheel: K418
compressor wheel: C355
bearing house: HT250 Gray iron
OTHER MODELS WE SUPPLY
Tain supplies high performance turbo cartridges(CHRAS) and turbo kits to aftermarket worldwide.
Originally manufactured by Honeywell(Garrett),BorgWarner(KKK),MHI(Mitsubishi), IHI, Toyota, Holset.
Model cover :
Garrett: GT12,GT14,GT15-25,GT35,GT37,GT42,T2,T3,T04B-E
KKK: K03,K04,K14,K16,K24,K27,KP35,BV39,BV40,BV45,BV50
Schwitzer: S100,S1A,S1B,S200,S2A,S2B-E,S300,S3A,S3B,S400,S410
Holset:
HX30(W),HX35(W),HX40(W),HX50(W),HX55(W),HE211(W),HE35V,HE40V,HE55V
IHI: RHB3,RHF3,RHF4,RHF5,
MHI: TC04,TC06,TD02,TD03,TD04,TD05,TD06,TF035
Toyota: CT9,CT12,CT12B,CT16,CT20,CT20B,CT26
TIAN TECHNICIAL TEAM
Our technical team was composed by one advanced engineer with 15 years experience engineers and four engineers who are very professional in this field. They are familiar with turbocharger system and product structure and dimension.
They are mainly responsible for source selection,quality control,dimension inspection and product development.Thanks to them,currently we can supply over 300 types of turbochras and always keep our products quality in a high level.
