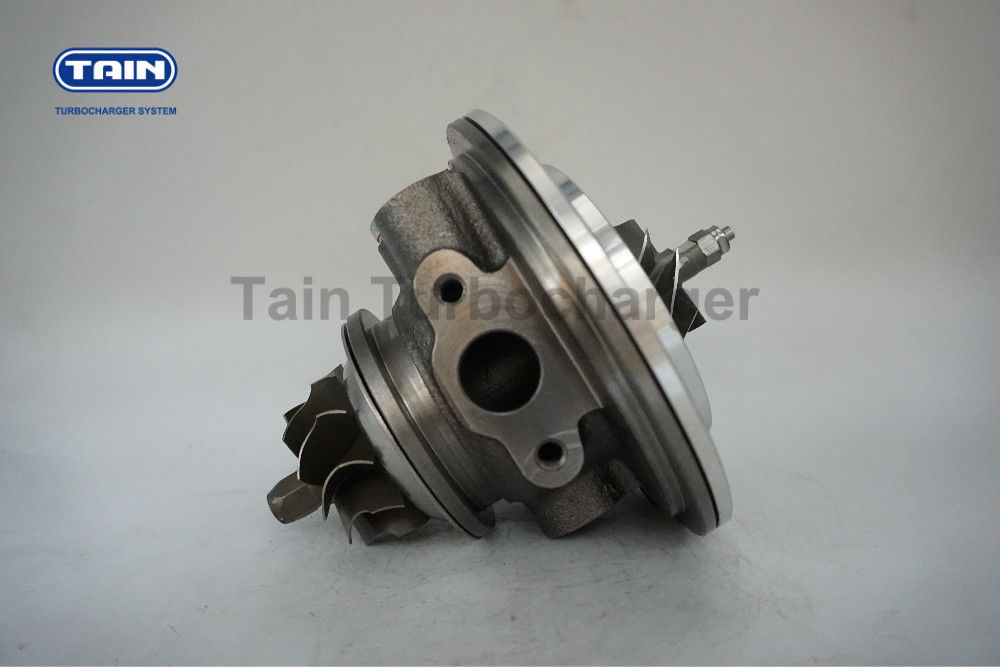

K03 Turbocharger cartridge 53039700016 53039700069 078145701H For AUDI S4 A6
DESCRIPTION
—— Model : K03
—— Turbo No. :
53039700016 53039700017 53039700069 53039700070
—— Chra No.: 5403-710-0509
—— OE No.:
078145701H 078145701L 078145701R 078145701S
078145703B 078145703C 078145703D 078145703H
078145703L 078145703R 078145703S 078145701Q
078145701T 078145703Q 078145703T
—— Balancing Test : <0.5Mg.mm / 150000RPM
—— Condition: Brand new
—— Fitted Cars :
| Audi S4 2.67L 195KW AGB |
| Audi A6/allroad 2.67L 184KW BES |
| Audi A6 2.67L 169KW AJK / ARE |
——Turbine wheels & compressor wheels size information
| Turbine Wheels |
|
|
| (A) Inducer |
(B) Exducer |
Blades |
| 45 |
38 |
11 |
| |
|
|
| CompressorWheels |
|
|
| (A) Inducer |
(B) Exducer |
Blades |
| 31.8 |
46 |
4/4 |
—— Material
turbine wheel: K418
compressor wheel: C355
bearing house: HT250 Gray iron
OTHER MODELS WE SUPPLY
Tain supplies high performance turbo cartridges(CHRAS) and turbo kits to aftermarket worldwide.
Originally manufactured by Honeywell(Garrett),BorgWarner(KKK),MHI(Mitsubishi), IHI, Toyota, Holset.
Model cover :
Garrett: GT12,GT14,GT15-25,GT35,GT37,GT42,T2,T3,T04B-E
KKK: K03,K04,K14,K16,K24,K27,KP35,BV39,BV40,BV45,BV50
Schwitzer: S100,S1A,S1B,S200,S2A,S2B-E,S300,S3A,S3B,S400,S410
Holset:
HX30(W),HX35(W),HX40(W),HX50(W),HX55(W),HE211(W),HE35V,HE40V,HE55V
IHI: RHB3,RHF3,RHF4,RHF5,
MHI: TC04,TC06,TD02,TD03,TD04,TD05,TD06,TF035
Toyota: CT9,CT12,CT12B,CT16,CT20,CT20B,CT26
TIAN TECHNICIAL TEAM
Our technical team was composed by one advanced engineer with 15 years experience engineers and four engineers who are very professional in this field. They are familiar with turbocharger system and product structure and dimension.
They are mainly responsible for source selection,quality control,dimension inspection and product development.Thanks to them,currently we can supply over 300 types of turbochras and always keep our products quality in a high level.
