Iveco Daily Turbocharger Cartirdge 53039700066 5303-710-0519 504014911 Chra
PRODUCT DESCRIPTION
TURBO NO
53039700066 53039700067 53039700078 53039700089
53039700090 53039700114 53039700115
CHRA No.
5303-710-0519
MODEL
K03
OEM NO.
504014911 / 504014915 / 504078436 / 504071262 / 504154738
Balancing Test
100% qualified
Material
turbine wheel: K418
compressor wheel: C355
bearing house: HT250 Gary iron
APPLICATION
Iveco DAILY 2.3L 81KW 2002- F1AEuro3
Iveco-Sofim Daily III 2.29L 81KW F1A UAZ
Iveco Daily 2.3L 85KW 2006- F1A Euro 4
Fiat Ducato 2.29L 81KW 2001- 2.3-F1A Euro3
Fiat Ducato 2.3L 82KW 2003- F1A EURO 3
Fiat Ducato 2.3TD 94KW 2005- 2.3-F1A Euro 4
Turbine wheel & compressor wheel size information
| Turbine Wheels |
|
|
| (A) Inducer |
(B) Exducer |
Blades |
| 45 |
40.3 |
11 |
| |
|
|
| Compressor Wheels |
|
|
| (A) Inducer |
(B) Exducer |
Blades |
| 37.75 |
51 |
6/6 |

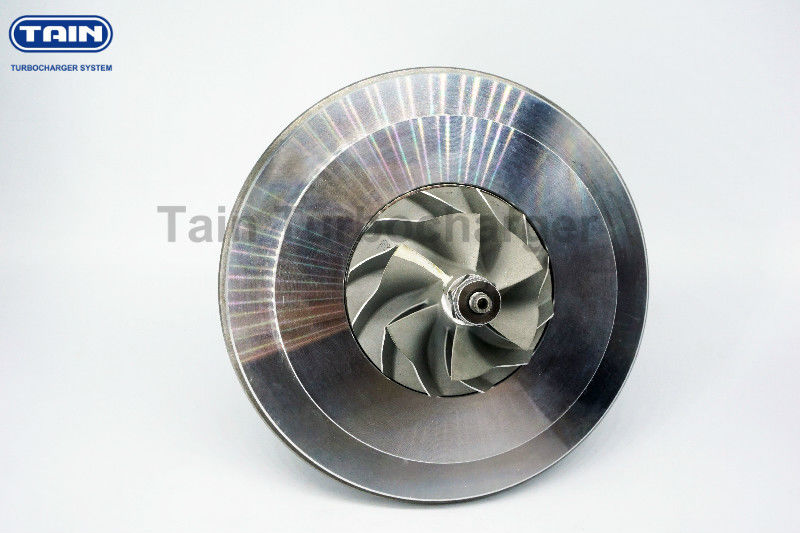

PRODUCT SHOW
PACKING INFORMATION
Inner packing: anti-rust paper,plastic bag,PE foam.
Outer packing: Neutral box,export carton with cushioning and shock proof packaging.
Supply customized package.
TECHNICIAl TEAM
Our technical team was composed by one advanced engineer with 15 years experience and four engineers who are very professional in this field.
They are familiar with turbocharger system and product structure and dimension. They are mainly responsible for source selection,quality control,dimension inspection and product development.
Thanks to them, currently we can supply over 300 types of turbo chras and always keep our producs quality in a high level.
