Turbocharger Cartridge
>
|
| Place of Origin | China |
| Brand Name | Tain turbo |
| Certification | ISO9001:2000 |
| Model Number | GT1852V |

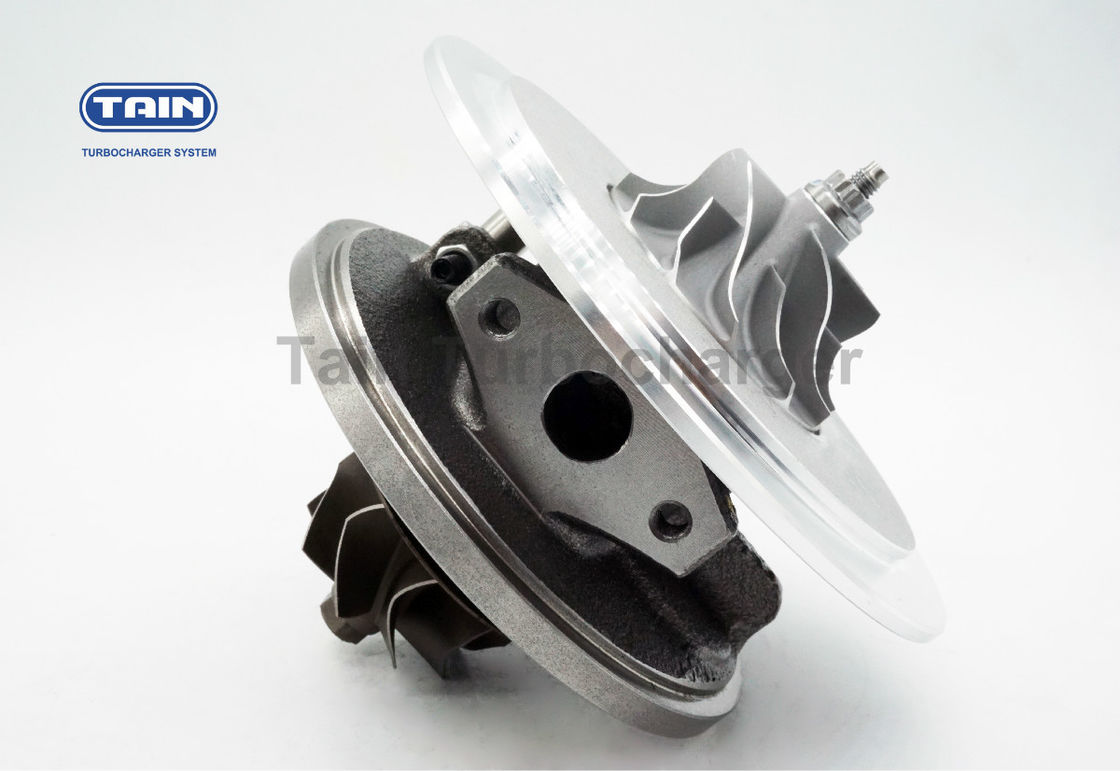

GT1852V Turbocharger Cartridge 778794-0001 A6110960799 For Mercedes-Benz Sprinter OM611
♦ PART NO.
709835-0001 709835-0002 709835-0002
709836-0001 709836-0003 709836-0004
709836-0005 711006-0001 711006-0003
711006-0004 726698-0001 726698-0002
726698-0003 778794-0001 778794-0002
♦ OE No.
A6110960799 A6110960399 6110960899
A6110960899 A6110960999
703890-0045
GT1852V
♦ Balancing test
<0.5Mg.mm / 150000RPM
♦ Condition
This is a high-quality brand new CHRA (cartridge or core assembly) of a turbocharger for forming or
building up a complete turbo.
♦ APPLICATION
| VEHICLE | Power | OEM | Engine Code |
|
Mercedes Benz E Class W210
|
141HP | A6110960399 | OM611 |
|
Mercedes Benz C Class W202
|
141HP | A6110960399 | OM611 |
|
Mercedes Benz E Class W210
|
104kw | A6110960799 | OM611 |
|
Mercedes Benz C Class W202
|
141HP | A6110960399 | OM611 |
|
Mercedes Benz Sprinter Van
|
141HP | 6110960899 | OM611Euro3 |
|
Mercedes Benz Sprinter
|
105KW | A6110960899 | OM611 |
|
Mercedes Benz C Class
|
105KW | 6110960999 | OM611 W203 |
|
Mercedes Benz New C class(W203) C220 cdi
|
104KW | A6110960999 | OM611 W203 |
| Mercedes Benz Sprinter | 110KW | 6110961699 | OM611 Corazon Euro3 |
♦ Turbine wheels & compressor wheels size information
| Turbine Wheels | ||
| (A) Inducer | (B) Exducer | Blades |
| 44.2 | 39.9 | 9 |
| Compressor Wheels | ||
| (A) Inducer | (B) Exducer | Blades |
| 36.8 | 52 | 6/6 |
♦ Material
| Turbine wheel | K418 | |
| Turbine shaft | 42CrMo | |
| Compressor wheel | C355(Aluminum casting) | |
| Bearing house | HT250(Gary iron) | |
| Journal bearing | CW713R | |
| Thrust bearing | Brass bar | |
| Thrust collar & spacer | 42CrMo | |
Tain supplies high-performance turbo cartridges(CHRAS) and turbo kits to aftermarket worldwide.
Originally manufactured by Honeywell(Garrett), Borg Warner(KKK), MHI(Mitsubishi), IHI, Toyota, Holset.
Model cover :
Garrett: GT12,GT14,GT15-25,GT35,GT37,GT42,T2,T3,T04B-E
KKK: K03,K04,K14,K16,K24,K27,KP35,BV39,BV40,BV45,BV50
Schwitzer: S100,S1A,S1B,S200,S2A,S2B-E,S300,S3A,S3B,S400,S410
Holset: HX30(W),HX35(W),HX40(W),HX50(W),HX55(W),HE211(W),HE35V,HE40V,HE55V
IHI: RHB3,RHF3,RHF4,RHF5,
MHI: TC04,TC06,TD02,TD03,TD04,TD05,TD06,TF035
Toyota: CT9,CT12,CT12B,CT16,CT20,CT20B,CT26
