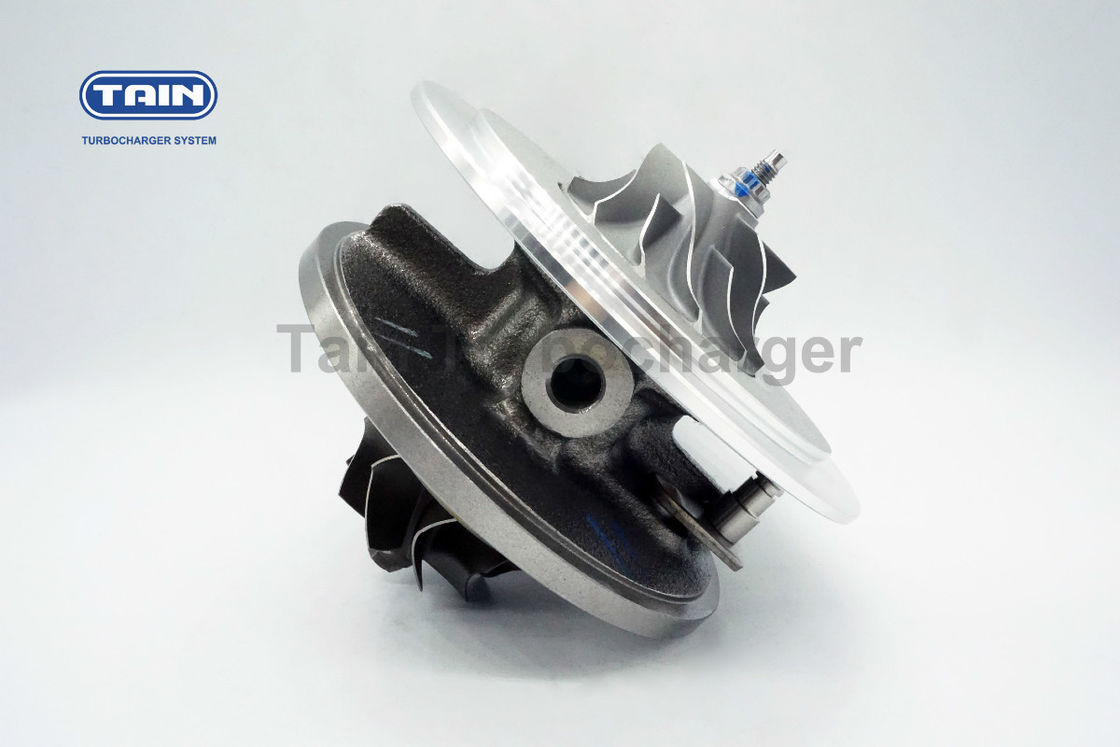

Turbocharger Cartridge
>
|
| Place of Origin | China |
| Brand Name | Tain turbo |
| Certification | ISO9001:2000 |
| Model Number | GT2256V |
|
►Model |
GT2256V | |
|
|
710811 / 710812 / 717661 / 717662 / 750639 | |
|
|
703891-0009 | |
|
|
55191597 / 46769104 / 46767677 / 71723489 | |
|
|
Brand new | |
|
|
<0.5Mg.mm / 150000RPM | |
|
►Vehicle |
ALFAROMEO 156JTD / 166JTD / LANCIA Aurelia / Lybra JTD / FIAT Marea | |
►Fit Turbocharger
| 710811-0001 | 710811-0002 | 710812-0001 | 710812-0002 |
| 717661-0001 | 717661-0002 | 717662-0002 | 750639-0002 |
| Application | Power | OEM | Engine Code |
| ALFA ROMEO 156 JTD | 2.4LD 103KW | 55191597 | M722 KT 24 |
| ALFA ROMEO 166 JTD | 2.4LD 103KW | 55191597 | M722 KT 24 |
| FIAT Marea | 2.4LD 103KW | 55191597 | M722 KT 24 |
| LANCIA Aurelia | 2.4LD 103KW | 55191597 | M722 KT 24 |
| LANCIA Lybra JTD | 2.4LD 129KW | 55191599 | M722.24 |
►Turbine wheels & compressor wheels size information
| Turbine Wheels | ||
| (A) Inducer | (B) Exducer | Blades |
| 42.9 | 50.3 | 9 |
| Compressor Wheels | ||
| (A) Inducer | (B) Exducer | Blades |
| 39.6 | 56 | 6/6 |
►Material
turbine wheel: K418
compressor wheel: C355
bearing house: HT250 Gary iron
Tain turbo is leading manufacturer of aftermarket turbochargers and parts in Wuxi,China.
Tain was established in 1997,covering over 4000 square meters.Tain has many advanced equipment like
MAKINO L2 5-axis equipment,SCHENCK balancing equipment,OKUMA CNC,electron beam welding
equipment,etc.We are professional on turbo chras with billet compressor wheels.We also sell other turbo
parts like turbine wheel,compressor wheel,repair kits and nozzle ring.Every cartridge is tested by
SCHENCK TB-Sonio,every shaft&wheel and compressor wheel is tested by SCHENCK Xano.Tain only
supply products with high quality and performance,and thanks to our professional technicians and years
of experience,Tain wins a good reputation among our customers.
Inner packing: anti-rust paper,plastic bag,PE foam.
Outer packing: Neutral box,export carton with cushioning and shockproof packaging.
Supply customized package.
