Turbocharger Cartridge
>
|
| Place of Origin | China |
| Brand Name | Tain turbo |
| Certification | ISO9001:2000 |
| Model Number | GT1544V |
PRODUCTION DETAILS
TURBO NO.
740821-0001 740821-0002 750030-0001 750030-0002
753420-0002 753420-0003 753420-0004 753420-0005
762328-0001 762328-0002 762328-0003
CHRA No.
740821-0001
MODEL
GT1544V
OE No.
9663199280, 7804903, 11657804903, 9660641380, 9663199280, 9654128780
Balancing Test
<0.5Mg.mm / 150000RPM
Fit For Car
►Citroen C3 / C4 / C5 / Xsara Hdi
►FORD Focus TDCi
►MAZDA 3
►MINI Cooper D
►PEUGEOT 206 / 207 / 307 / 308 / 308 SW / 407 / 3008 Tdi / 5008 Hdi
► S40 Hdi / V50
Condition

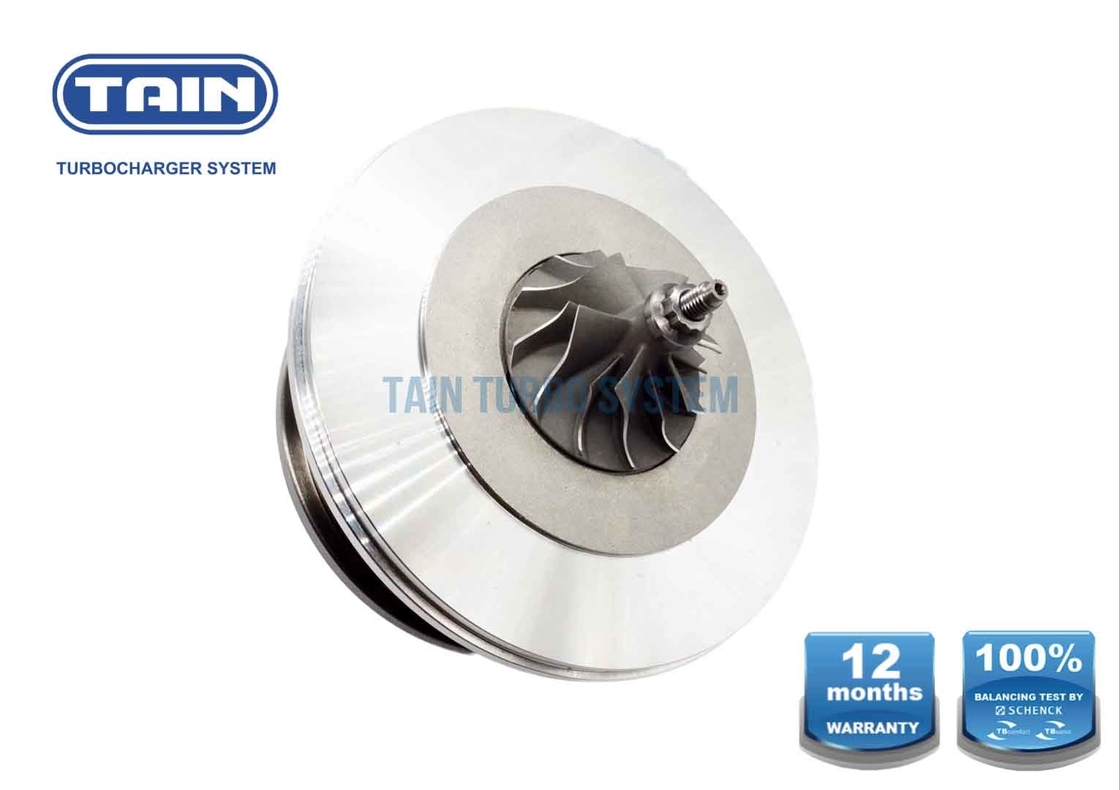

►This is a high quality brand new CHRA (cartridge or core assembly) of a turbocharger.
►It is balancing tested with a qualified report.
►It is carefully tested,without damage and rust.
►It is carefully cleaned and packed with safety package.
APPLICATION
| Vehicle | Power | OEM | Engine Code |
| Citroen C3 | 1.6LD 109HP | 9663199280 | DV6TED4 9HZ |
| Citroen C4 | 1.6LD 109HP | 9663199280 | DV6TED4 9HZ |
| Citroen Xsara HDi | 1.6LD 110HP | 9663199280 | DV6TED4 |
| Citroen C5 | 1.6LD 109HP | 9663199280 | DV6TED4 9HY |
| FORD Focus TDCi | 1.6LD 108HP | 9663199280 | G8DA/B |
| FORD Focus C-Max | 1.6LD 113HP | 9663199280 | DV6TED4 |
| MAZDA 3 | 1.6LD 107HP | 9663199280 | Y601 DV6TED4 |
| MINI Cooper D | 1.6LD 107HP | 9663199280 | DV6 TED4 |
| PEUGEOT 206 | 1.6LD 110HP | 9663199280 | DV6TED4 |
| PEUGEOT 207 | 1.6LD 110HP | 9663199280 | DV6TED4 |
| PEUGEOT 307 | 1.6LD 110HP | 9663199280 | DV6TED4 9HY |
| PEUGEOT 308 | 1.6LD 110HP | 9663199280 | DV6TED4 |
| PEUGEOT 308 SW | 1.6LD 110HP | 9663199280 | DV6TED4 |
| PEUGEOT 407 | 1.6LD 110HP | 9663199280 | DV6TED4 9HY/9HZ |
| PEUGEOT 3008 Tdi | 1.6LD 110HP | 9663199280 | DV6TED4 9HZ |
| 5008 HDi | 1.6LD 110HP | 9663199280 | DV6TED4 |
| S40 HDi | 1.6LD 110HP | 9663199280 | D4164T |
| V50 | 1.6LD 107HP | 9663199280 | D4164T |
Turbine wheels & compressor wheels size information
| Turbine Wheels | ||
| (A) Inducer | (B) Exducer | Blades |
|
33.1 |
39 | 11 |
| Compressor Wheels | ||
| (A) Inducer | (B) Exducer | Blades |
| 31.1 | 44 |
6/6 |
Material
► turbine wheel: K418
► compressor wheel: C355
► bearing house: HT250 Gary iron
Tain supplies high performance turbo cartridges(CHRAS) and turbo kits to aftermarket worldwide.
Originally manufactured by Honeywell(Garrett),Borg Warner(KKK),MHI(Mitsubishi), IHI, Toyota, Holset.
Model cover :
Garrett: GT12,GT14,GT15-25,GT35,GT37,GT42,T2,T3,T04B-E
KKK: K03,K04,K14,K16,K24,K27,KP35,BV39,BV40,BV45,BV50
Schwitzer: S100,S1A,S1B,S200,S2A,S2B-E,S300,S3A,S3B,S400,S410
Holset: HX30(W),HX35(W),HX40(W),HX50(W),HX55(W),HE211(W),HE35V,HE40V,HE55V
IHI: RHB3,RHF3,RHF4,RHF5,
