Turbocharger Cartridge
>
|
| Place of Origin | China |
| Brand Name | Tain turbo |
| Certification | ISO9001:2000 |
| Model Number | GT2052V |

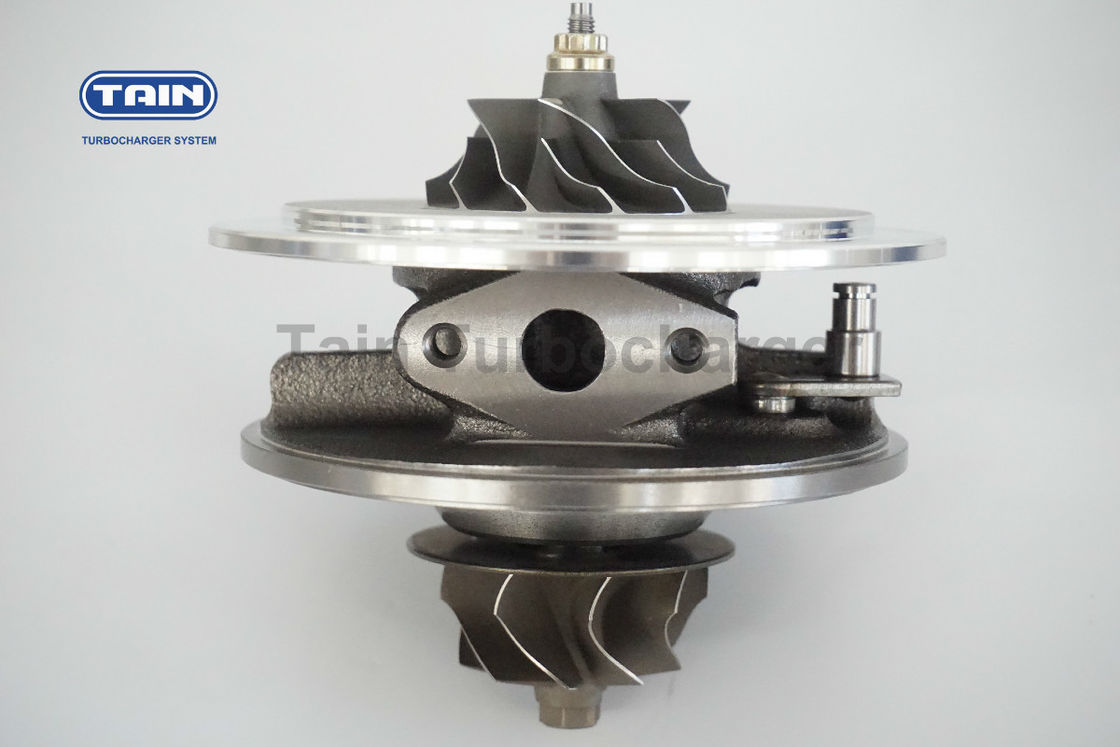

—— Model:GT2052V
—— Turbo No.:454135-0001 454135-0002 454135-0006 454135-0011
—— Chra No.: 434766-0001
—— OE No.: 059145701K 059145702D 059145702G
—— Balancing Test : <0.5Mg.mm / 150000RPM
—— Condition: Brand new
—— Fitted Cars : SKODA Siperb Tdi - 2001
AUDI A4 / A6 / A8 TDI - 2002
VOLKSWAGEN Passat - 2000
—— APPLICATION
| Turbo No. | Application | Power | OEM | Engine Code |
| 454135-0001 | SKODA Superb Tdi | 2.5LD 132HP | 059145701K | V6 |
| AUDI A4 | 2.5LD 150HP | 059145702D | V6 | |
| AUDI A6 | 2.5LD 180HP | 059145701K | V6 | |
| AUDI A8 | 2.5LD 180HP | 059145701K | V6 | |
| VOLKSWAGEN Passat | 2.5LD 150HP | 059145702G | V6 |
——Turbine wheels & compressor wheels size information
| Turbine Wheels | ||
| (A) Inducer | (B) Exducer | Blades |
| 47 | 38.6 | 9 |
| Compressor Wheels | ||
| (A) Inducer | (B) Exducer | Blades |
| 38.6 | 52 | 6/6 |
—— Material
turbine wheel: K418
compressor wheel: C355
bearing house: HT250 Gary iron
Tain supplies high performance turbo cartridges(CHRAS) and turbo kits to aftermarket worldwide.
Originally manufactured by Honeywell(Garrett),Borg Warner(KKK),MHI(Mitsubishi), IHI, Toyota, Holset.
Model cover :
Garrett: GT12,GT14,GT15-25,GT35,GT37,GT42,T2,T3,T04B-E
KKK: K03,K04,K14,K16,K24,K27,KP35,BV39,BV40,BV45,BV50
Schwitzer: S100,S1A,S1B,S200,S2A,S2B-E,S300,S3A,S3B,S400,S410
Holset: HX30(W),HX35(W),HX40(W),HX50(W),HX55(W),HE211(W),HE35V,HE40V,HE55V
IHI: RHB3,RHF3,RHF4,RHF5,
MHI: TC04,TC06,TD02,TD03,TD04,TD05,TD06,TF035
Toyota: CT9,CT12,CT12B,CT16,CT20,CT20B,CT26
Our technical team was composed by one advanced engineer with 15 years experience engineers and
four engineers who are very professional in this field. They are familiar with turbocharger system and
product structure and dimension.
They are mainly responsible for source selection,quality control,dimension inspection and product
development.Thanks to them,currently we can supply over 300 types of turbochras and always keep our
products quality in a high level.
