Turbocharger Cartridge
>
|
| Place of Origin | China |
| Brand Name | Tain turbo |
| Certification | ISO9001:2000 |
| Model Number | GT2556V |

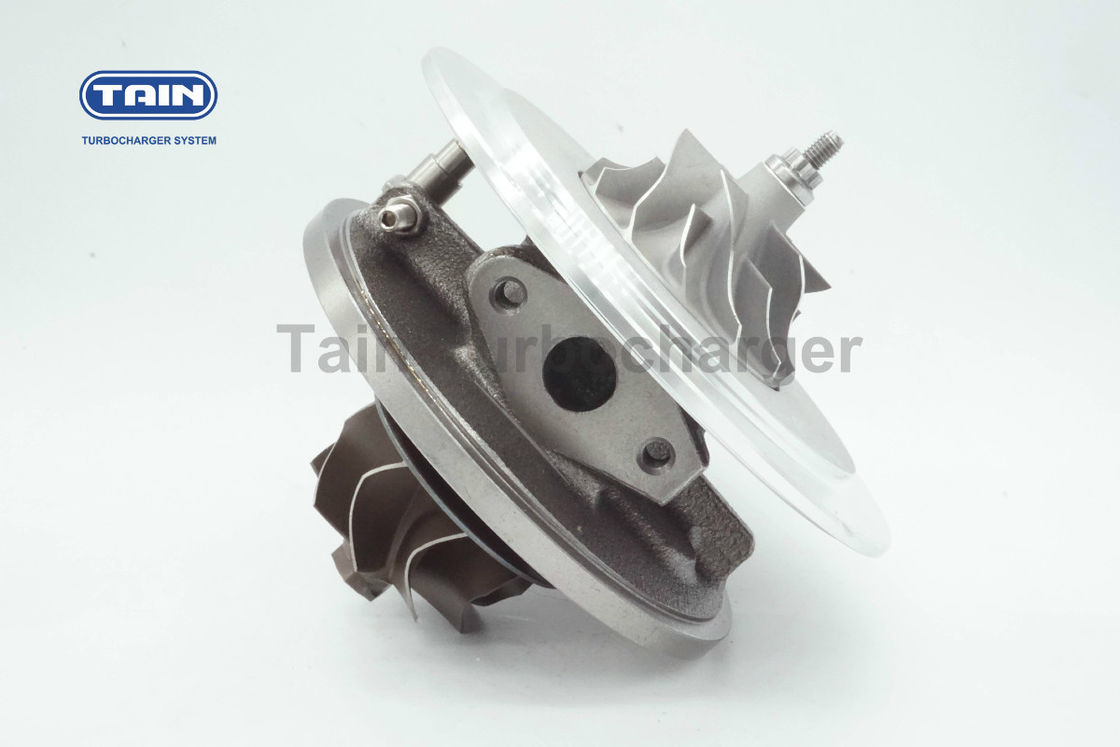

A CHRA (known as turbo cartridge) is the center housing rotating assembly of a turbocharger.
A CHRA consists of a bearing house,turbine shaft,compressor wheel,back plate,heat shield
All the other internal parts.All of our CHRAs are fully assembled and balanced by SCHENCK TB-Sonio.
►Model : GT2556V
►Part NO. : 454191-5017S , 454191-9017S , 454191-5015S , 454191-9015S , 454191-5012S , 454191-0009 , 454191-0007 , 454191-0003 , 454191-0001 , 454191-0006
►Chra NO. : 434766-0016
►OE NO. : 2247906H , 2248906G , 11652248906 , 11652248907 , 11652247691
►Balancing Test : <0.5Mg.mm / 150000RPM
►Condition : Brand new with safety package
►Fit For Car :
►APPLICATION
| Turbo No. | Application | Power | OEM | Engine Code |
| 454191 | BMW 530D | 142KW | 2247906H | M57D E38 E39 |
| BMW 730D | 142KW | 2248906G | M57D E38 E39 |
►Turbine wheels & compressor wheels size information
| Turbine Wheels | ||
(A) Inducer |
(B) Exducer |
Blades |
47 |
51.4 |
9 |
| Compressor Wheels | ||
(A) Inducer |
(B) Exducer |
Blades |
| 41.5 | 56 | 6/6 |
►Material
| Turbine wheel | K418 | |
| Turbine shaft | 42CrMo | |
| Compressor wheel | C355(Aluminum casting) | |
| Bearing house | HT250(Gary iron) | |
| Journal bearing | CW713R | |
| Thrust bearing | Brass bar | |
| Thrust collar & spacer | 42CrMo | |
Tain turbo is a specialized turbocharger and turbo parts manufacturer in Wuxi,China.
Established in 1997,covering over 4000 square meters.Tain devote ourselves to offer the best
service.Tain currently supply more than 1000 types of cartridges and also other turbo parts.Tain is not
just a manufacturer,but also a supplier of customized OEM products.Thanks to our professional
technicians and years of experience,Tain wins a good reputation,high evaluation among our customers.
1, We have a professional QC team to control the quality from material to finished products
2, We have advanced equipment to promise the product performance
3, We have over 400 types of turbo chras to meet customers’ requirements
4, We have huge stock to promise the lead time
5, Welcome to inquire,you will receive the feedback within 24 hours
