Turbocharger Cartridge
>
|
| Place of Origin | China |
| Brand Name | Tain turbo |
| Certification | ISO9001:2000 |
| Model Number | GT1749V |

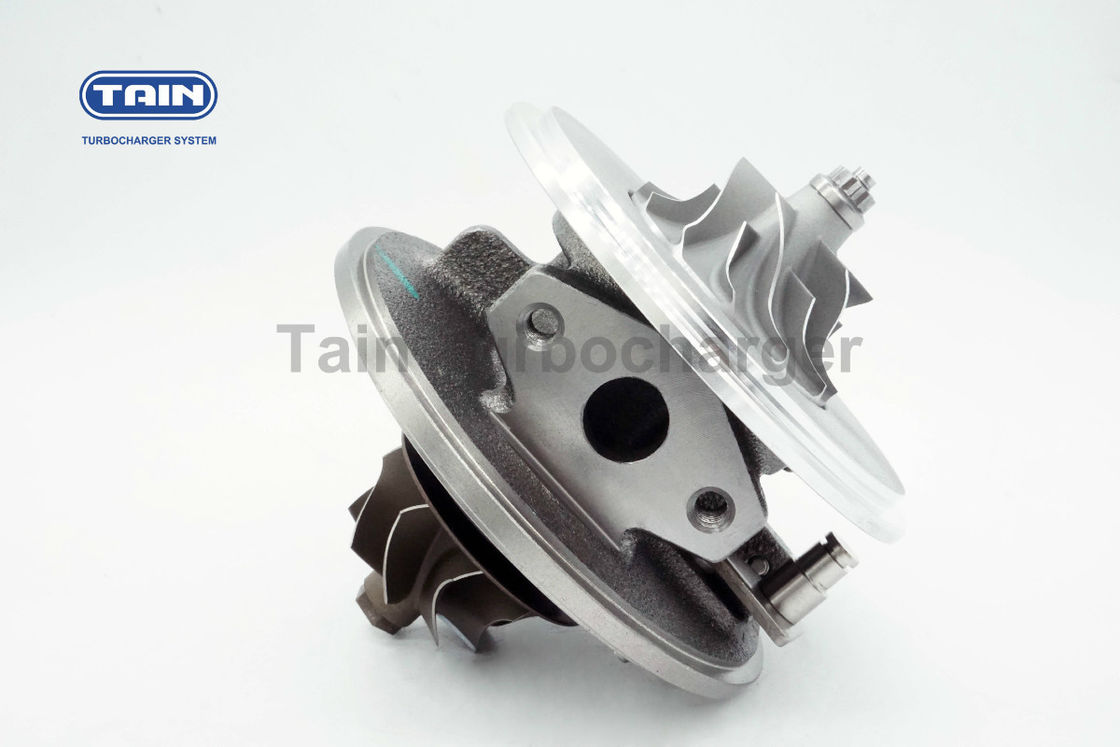

MODEL
GT1749V
CHRA No.
433395-0010
TURBO NO.
454231-0001 454231-0003 454231-0004
454231-5001S 706712-0001
OEM NO.
028145702H / 028145702HV500 / 038145702L
Balancing Test
100% qualified
Material
turbine wheel: K418
compressor wheel: C355
bearing house: HT250 Gary iron
APPLICATION
| Trubo No. | Application | Power | OEM | Engine Code |
| 454231-0001 | AUDI A4 | 1.9LD 110HP | 028145702H | AHH/AFN |
| AUDI A6 | 1.9LD 110HP | 028145702HV500 | AHH/AFN | |
| VOLKSWAGEN Passat | 1.9LD 110HP | 028145702HV500 | AFN/AVG | |
| SKODA Superb TDi | 1.9LD 100HP | 038145702L | AVB |
Turbine wheels & compressor wheels size information
| Turbine Wheels | ||
| (A) Inducer | (B) Exducer | Blades |
| 36 | 43 | 9 |
| Compressor Wheels | ||
| (A) Inducer | (B) Exducer | Blades |
|
33 |
49 |
6/6 |
Tain turbo is a specialized turbocharger and turbo parts manufacturer in Wuxi,China.
Established in 1997,covering over 4000 square meters.Tain devote ourselves to offer the best
service.Tain currently supply more than 1000 types of cartridges and also other turbo parts.Tain is not
just a manufacturer,but also a supplier of customized OEM products.Thanks to our professional
technicians and years of experience,Tain wins a good reputation,high evaluation among our customers.
Tain supplies high performance turbo cartridges(CHRAS) and turbo kits to aftermarket worldwide.
Originally manufactured by Honeywell(Garrett),Borg Warner(KKK),MHI(Mitsubishi), IHI, Toyota, Holset.
Model cover :
Garrett: GT12,GT14,GT15-25,GT35,GT37,GT42,T2,T3,T04B-E
KKK: K03,K04,K14,K16,K24,K27,KP35,BV39,BV40,BV45,BV50
Schwitzer: S100,S1A,S1B,S200,S2A,S2B-E,S300,S3A,S3B,S400,S410
Holset: HX30(W),HX35(W),HX40(W),HX50(W),HX55(W),HE211(W),HE35V,HE40V,HE55V
IHI: RHB3,RHF3,RHF4,RHF5,
MHI: TC04,TC06,TD02,TD03,TD04,TD05,TD06,TF035
Toyota: CT9,CT12,CT12B,CT16,CT20,CT20B,CT26
