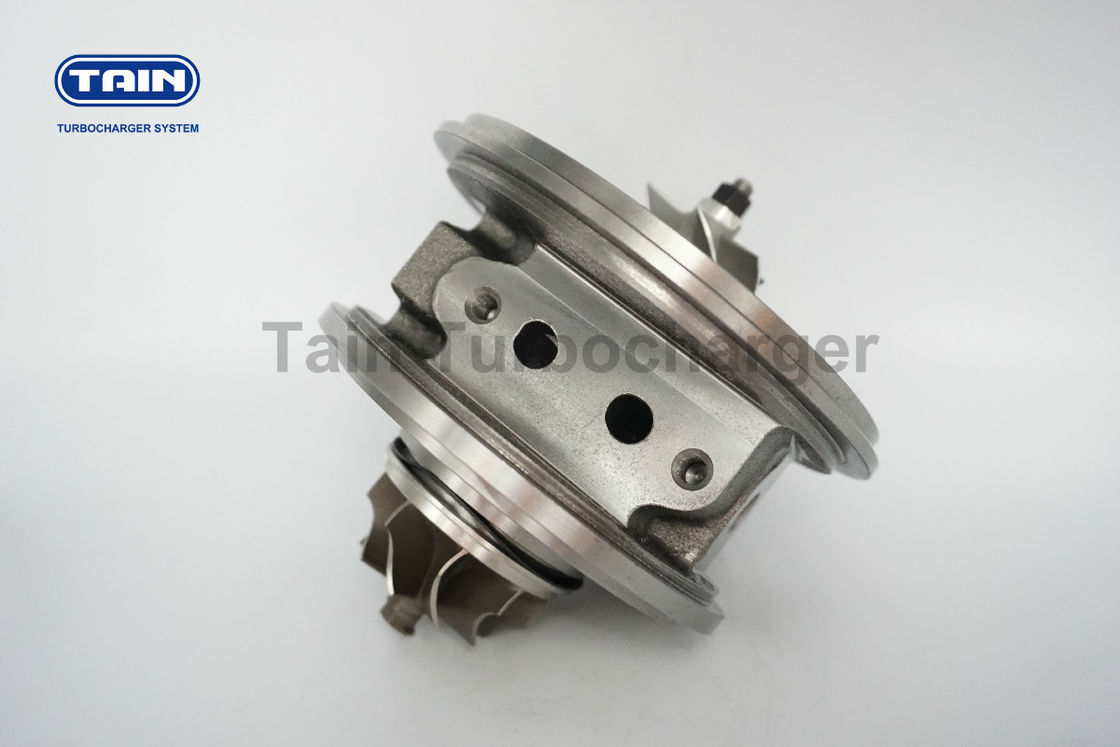

RHV4 Turbo Cartridge VJ36 VJ37 VHA20012 MAZDA
  • RHV4 Turbo Cartridge VJ36 VJ37 VHA20012 MAZDA
  • RHV4 Turbo Cartridge VJ36 VJ37 VHA20012 MAZDA
  • RHV4 Turbo Cartridge VJ36 VJ37 VHA20012 MAZDA
  • RHV4 Turbo Cartridge VJ36 VJ37 VHA20012 MAZDA
RHV4 Turbo Cartridge VJ36 VJ37 VHA20012 MAZDA

RHV4 Turbo Cartridge VJ36 VJ37 VHA20012 MAZDA

Place of Origin China
Brand Name Tain turbo
Certification ISO9001:2000
Model Number RHV4
Product Details
Product Description:
Turbo Cartridge,turbocharger Chra,turbo Core
Model:
RHV4
PN NO.:
VJ36,VJ37
OEM NO.:
VHA20012,VFD20017
Engine:
RF7K13700,RF7J13700D,RF7J13700E
Application:
MAZDA NextR 2005 / 2006
Cooled:
Water Cooled
Highlight:

chra turbo cartridge

,

turbocharger chra cartridge

Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
Neutral packing or Tain color box
Delivery Time
As per quantity required
Payment Terms
T/T, L/C, Western Union
Supply Ability
500 pcs per month
Product Description

RHV4 Turbo Cartridge VJ36 VJ37 VHA20012 MAZDA


Material


Turbine wheel K418
Turbine shaft 42CrMo
Compressor wheel C355(Aluminum casting)
Bearing house HT250(Gary iron)
Journal bearing CW713R
Thrust bearing Brass bar
Thrust collar & spacer 42CrMo




The turbocharger cartridge comprises a center housing defining a bore therethrough, bearings housed



in the bore, a shaft rotatably supported in the bearings, a compressor wheel affixed to one end of the





shaft and a turbine wheel affixed to an opposite end of the shaft.


  PRODUCT DETAIL




Model





RHV4



Turbo No.





VJ36 VJ37



Chra No.





VJ36





OE No.







RF7K13700



VHA20012



RF7J1370







Condition





Brand new with safe package



Balancing Test





<0.5Mg.mm / 150000RPM
 APPLICATION
Part number BRAND VEHICLE Model Year Engine POWER CC
VJ36/RF7J13700D/ VHA20012 Mazda 3 2.0 CD 01/2003 - MZ-CD 105 Kw 2.0L
Mazda 5 2.0 CD 01/2003 - MZ-CD 105 Kw 2.0L
Mazda 6 CD 01/2003 - MZ-CD 104 Kw 2.0L
VJ37/RF7K13700/ RF7K.13.700 Mazda 5 2.0 CD 03/2006 - GG-GY 81 Kw 2.0L
Mazda 5 2.0 CD 03/2006 - GG-GY 90 Kw 2.0L
Mazda 6 CD 03/2006 - GG-GY 90 Kw 2.0L







Turbine wheels & compressor wheels size information





Turbine Wheels
(A) Inducer (B) Exducer Blades
44.5 34 9

Compressor Wheels
(A) Inducer (B) Exducer Blades
34.5 47 6/6






 TECHNICAL  TEAM


Our technical team was composed of one advanced engineer with 15 years of experience and four

engineers who are very professional in the turbocharger field. They are familiar with turbocharger systems and

product structure and dimension.

They are mainly responsible for source selection, quality control, dimension inspection, and product

development. Thanks to them, Tain Turbo currently  can supply over 800 types of turbo cartridges and always keep

our product quality at a high level.
