►Model
|
KP35 | |
►Turbo No.
|
54359700005
54359880005
54359700006
54359880006
54359700018
54359880018
54359700019
54359880019
|
|
►Chra No.
|
5435-710-0503 | |
►OE No.
|
73501343 / 93191833 / 93177409 | |
►Balancing Test
|
<0.5Mg.mm / 150000RPM | |
►Vehicle
|
OPEL Corsa CDTi / FIAT Panda JTD / Punto JTD / LANCIA Musa JTD |
►APPLICATION
Application | Engine | Power | OEM | Engine Code |
OPEL Corsa CDTi | 1.2LD | 69HP | 93177409 | Z13DT |
FIAT Panda JTD, | 1.3LD | 70HP | 73501343 | SJTD |
FIAT Punto JTD | 1.3LD | 70HP | 73501343 | SJTD |
FIAT Doblo JTD | 1.3LD | 70HP | 73501343 | SJTD |
FIAT Doblo Multijet | 1.3LD | 75HP | 93191833 | SJTD |
FIAT Passanger | 1.3LD | 70HP | 93191993 | SJTD |
LANCIA Musa JTD | 1.3LD | 70HP | 73501343 | SJTD |
Turbine Wheels | ||
(A) Inducer | (B) Exducer | Blades |
27.6 | 34.7 | 9 |
Compressor Wheels | ||
(A) Inducer | (B) Exducer | Blades |
25.9 | 37 | 5/5 |
►Condition

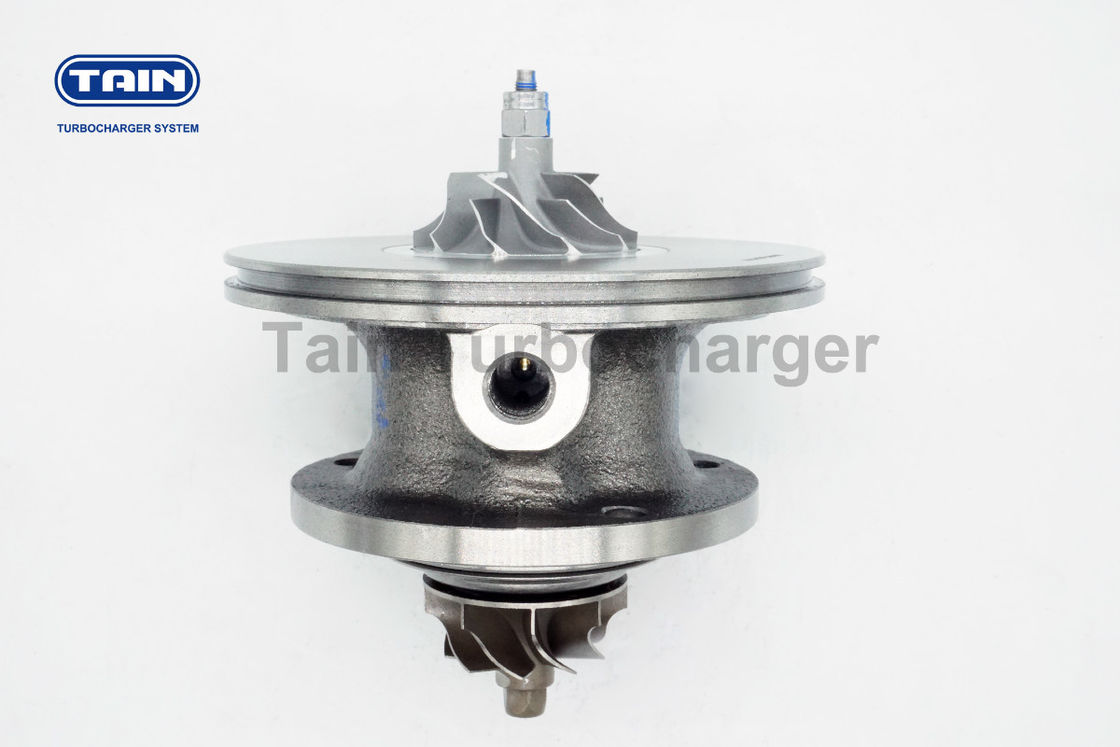

This is a high quality brand new CHRA (cartridge or core assembly) of a turbocharger.
It is balancing tested with a qualified report.
It is carefully tested,without damage and rust.
It is carefully cleaned and packed with safety package.
►Material
Turbine wheel | K418 | |
Turbine shaft | 42CrMo | |
Compressor wheel | C355(Aluminum casting) | |
Bearing house | HT250(Gary iron) | |
Journal bearing | CW713R | |
Thrust bearing | Brass bar | |
Thrust collar & spacer | 42CrMo |
Inner packing: anti-rust paper,plastic bag,PE foam.
Outer packing: Neutral box,export carton with cushioning and shock proof packaging.
Supply customized package.
Tain supplies high performance turbo cartridges(CHRAS) and turbo kits to aftermarket worldwide.
Originally manufactured by Honeywell(Garrett),Borg Warner(KKK),MHI(Mitsubishi), IHI, Toyota, Holset.
Model cover :
Garrett: GT12,GT14,GT15-25,GT35,GT37,GT42,T2,T3,T04B-E
KKK: K03,K04,K14,K16,K24,K27,KP35,BV39,BV40,BV45,BV50
Schwitzer: S100,S1A,S1B,S200,S2A,S2B-E,S300,S3A,S3B,S400,S410
Holset: HX30(W),HX35(W),HX40(W),HX50(W),HX55(W),HE211(W),HE35V,HE40V,HE55V
IHI: RHB3,RHF3,RHF4,RHF5,
MHI: TC04,TC06,TD02,TD03,TD04,TD05,TD06,TF035
Toyota: CT9,CT12,CT12B,CT16,CT20,CT20B,CT26
