| Place of Origin | China |
| Brand Name | Tain turbo |
| Certification | ISO 9001-2000 |
| Model Number | GT1752H |

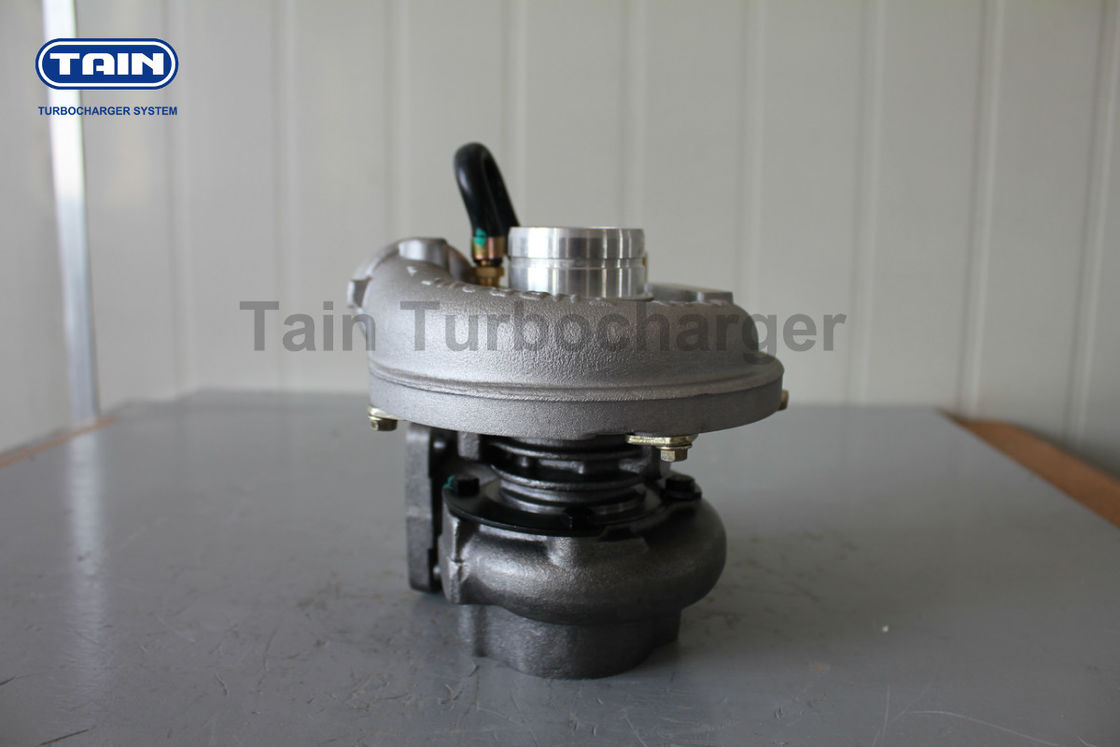

Fiat Ducato / RenauIt Master Compleie Turbocharger GT1752H 454061-5001 99466793 500385898
DESCRIPTION
454061-0003 454061-0004 454061-0006 454061-0007
454061-0008 454061-0009 454061-0014 454061-5010S
454061-0010 454061-0011 454061-0012
GT1752H
Balancing Test
100% qualified
| TURBO NUMBER | APPLICATION | POWER | OEM | ENGINE CODE |
| 454061-0003 | Fiat Ducato | 75KW | 99466793 | 8140.43.2600 |
| Iveco Daily | 75KW | 99466793 | 8140.43.2600 | |
| RenauIt Master | 86KW | 99466793 | 8140.43.2600 | |
| Naveco Daily | 78KW | 500385898 | 8140.23.3700 |
PRODUCT SHOW


SPEAR PARTS BOM

| Compressor Wheels | Turbine Wheels | Chra No. |
| 436131-0002 | 464714-0009 | 433289-0010 |
| Beraing Housing | Back Plate | Heat Sheild |
| 435793-0005 | 434689-0004 | 434302-0001 |
| Turbine Housing | Actuator | Nozzing ring |
| 435788-0026 | 434302-0001 | |
| Cartridge Calibration Date | ||
| 140000 RPM<0.5G unblance weight<50mg.mm | ||

DIMENSION

Compressor Wheels  436131-0002


| blade | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) |
| 6/6 | 38.6 | 52 | 5 | 26 | 5.08 |





Shaft&Wheels 434714-0009



| blade | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) |
| 9 | 44.5 | 37.5 | 7.7 | 7.88 | 5.08 |


Spear Parts Material

| Turbine wheel | K418 | |
| Turbine shaft | 42CrMo | |
| Compressor wheel | C355(Aluminum casting) | |
| Bearing house | HT250(Gary iron) | |
| Journal bearing | CW713R | |
| Thrust bearing | Brass bar | |
| Thrust collar & spacer | 42CrMo | |


 - We use a set of SCHENCK balancing equipments including compressor wheel balancing    equipment,shaft balancing equipment and SCHENCK TB Soniyo,which help us to ensure the quality.
 - Professional in turbochargers and years of experience.
 - Competitive price because of our good cost control.
 - Strictly control the production flow to ensure the on-time delivery.
 - Complete product chain system,to meet customers’ different demands.
 - 3D sample to help customers develop new products.
 - 12 months warranty and aftersalses testing
 - Customized OEM products,offer flexible ways of packing to meet customers’ requirement
 - Technology updates and equipment service

Inner packing: anti-rust paper,plastic bag,PE foam.
Outer packing: Neutral box,export carton with cushioning and shock proof packaging.
Supply customized package.
