| Place of Origin | China |
| Brand Name | Tain turbo |
| Certification | ISO 9001-2000 |
| Model Number | K16 |
Mercedes OM904LA Complete Turbocharger K17 531698897021 53169707021 9040963599
PRODUCT DETIALS
| Model | K16 | |
| Turbo No. | 53169887021 53169707021 | |
| Chra No. | 53167100012 | |
| OE No. | 9040963599 | |
| Fit For Car | Mercedes Truck OM904LA | |
| Material | Turbine wheel: K418 turbine shaft: 42CrMo compressor wheel: C355 Back plate: Aluminum casting Bearing house: HT250 | |
| Balancing Test | <0.5Mg.mm / 140000RPM | |
APPLICATION
| Car | Engine | OEM |
| Mercedes-Benz Truck | OM904LA | 9040963599 |
SPEAR PARTS BOM
| Compressor Wheels | Turbine Wheels | Chra No. |
| 53241232032 | 5316125015 | 53167100012 |
| Beraing Housing | Back Plate | Heat Sheild |
| 53161500066 | 53241515714 | 53161652000 |
| Turbine Housing | Actuator | Nozzing ring |
| 53161009026 | ||
| Cartridge Calibration Date | ||
| 140000 RPM<0.5G unblance weight<50mg.mm |
||

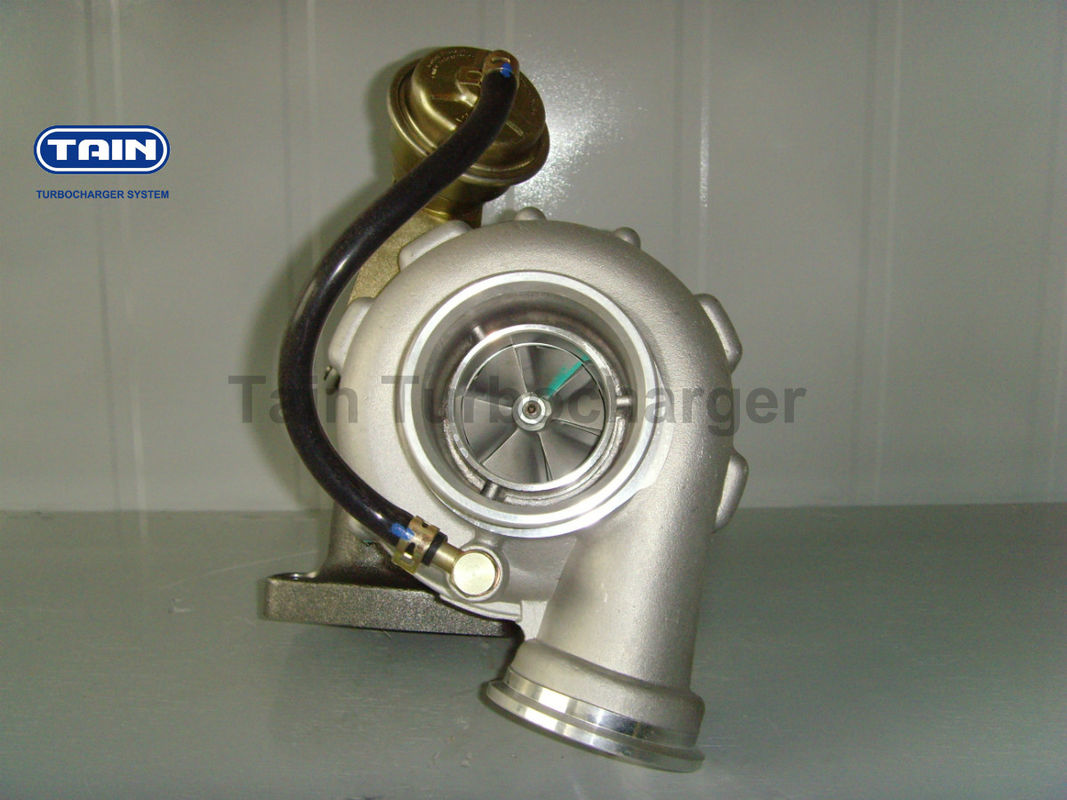

PRODUCT SHOW
DIMENSION
Compressor Wheels 53241232032
| blade | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) |
| 6/6 | 44.2 | 63.5 | 3.9 | 30 | 5.4 |
Shaft&Wheels 53161205015
| blade | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) |
| 12 | 55 | 46 | 6.2 | 8.48 | 5.4 |
Spear Parts Material
| Turbine wheel | K418 | |
| Turbine shaft | 42CrMo | |
| Compressor wheel | C355(Aluminum casting) | |
| Bearing house | HT250(Gary iron) | |
| Journal bearing | CW713R | |
| Thrust bearing | Brass bar | |
| Thrust collar & spacer | 42CrMo | |
We use a set of SCHENCK balancing equipments including compressor wheel balancing equipment,shaft balancing equipment and SCHENCK TB Soniyo,which help us to ensure the quality.
Professional in turbochargers and years of experience.
Competitive price because of our good cost control.
Strictly control the production flow to ensure the on-time delivery.
Complete product chain system,to meet customers’ different demands.
3D sample to help customers develop new products.
12 months warranty and aftersalses testing
Customized OEM products,offer flexible ways of packing to meet customers’ requirement
Technology updates and equipment service
PACKING INFORMATION
Inner packing: anti-rust paper,plastic bag,PE foam.
Outer packing: Neutral box,export carton with cushioning and shock proof packaging.
Supply customized package.
