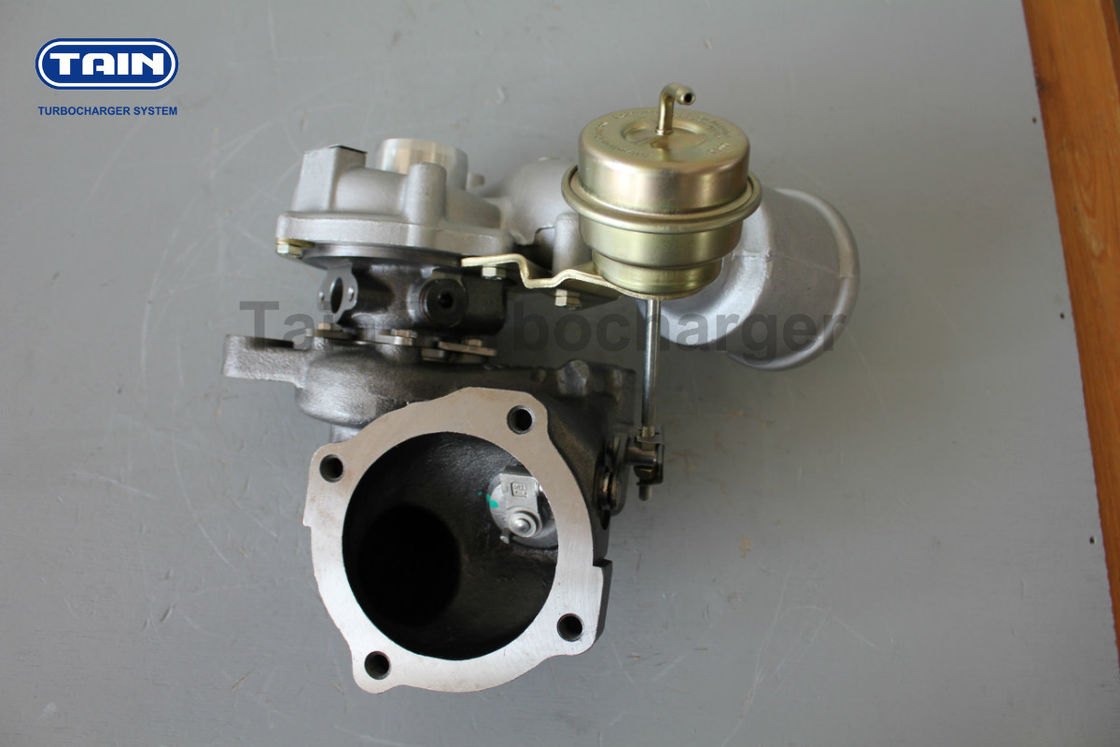

AUDI SEAT SKODA Complete Turbocharger K03 53039700052 06A145713F
2, Part No.: 53039700052 53039700058 53039700073 53039700082
53039880052 53039880058 53039880073 53039880082
3, Chra No.: 53037100516
5, Balancing test : <0.5Mg.mm / 150000RPM
| Application | Engine | Power | OEM | Engine Code |
|---|---|---|---|---|
| AUDI A3 | 1.8LP | 132KW | 06A145713F | |
| AUDI TT | 1.8LP | 140KW | 06A145713F | BVR |
| SEAT Leon Cupra | 1.8LP | 132KW | 06A145713F | |
| SKODA Octavia VRS | 1.8LP | 132KW | 06A145713F | AUQ |
| WOLKSWAGEN Golf | 1.8LP | 132KW | 06A145713F | |
| WOLKSWAGEN Bora | 1.8LP | 132KW | 06A145713F | |
| WOLKSWAGEN Jetta | 1.8LP | 132KW | 06A145713F | |
8, Package : anti-rust paper + plastic bag + PE foam + corrugated box
SPEAR PARTS BOM
| Compressor Wheels | Turbine Wheels | Chra No. |
| 53041232029 | 53031205023 | 53037100516 |
| Beraing Housing | Back Plate | Heat Sheild |
| 53041500017 | 53041515712 | 53031652000 |
| Turbine Housing | Actuator | Nozzing ring |
| 53031009078 | 58251104084 | |
| Cartridge Calibration Date | ||
| 140000 RPM<0.5G unblance weight<50mg.mm | ||
DIMENSION
Compressor Wheels 53041232029
| blade | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) |
| 4/4 | 38.1 | 51 | 5.5 | 25.6 | 4.6 |
Shaft&Wheels 53031205023
| blade | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) |
| 11 | 45 | 40.4 | 6.8 | 7 | 4.6 |
Spear Parts Material
| Turbine wheel | K418 | |
| Turbine shaft | 42CrMo | |
| Compressor wheel | C355(Aluminum casting) | |
| Bearing house | HT250(Gary iron) | |
| Journal bearing | CW713R | |
| Thrust bearing | Brass bar | |
| Thrust collar & spacer | 42CrMo | |
ABOUT US
Tain turbo is leading manufacturer of aftermarket turbochargers and parts in Wuxi,China. .
Tain was established in 1997,covering over 4000 square meters.Tain has many advanced equipments
like MAKINO L2 5-axis equipment,SCHENCK balancing equipments,OKUMA CNC,electron beam welding
equipment,etc.We are professional on turbo chras with billet compressor wheels.We also sell other turbo
parts like turbine wheel,compressor wheel,rebpair kits and nozzle ring.Every cartridge is tested by
SCHENCK TB-Sonio,every shaft&wheel and compressor wheel is tested by SCHENCK Xano.Tain only
supply products with high quality and performance,and thanks to our professional technicians and years
of experience,Tain wins a good reputation among our customers.
