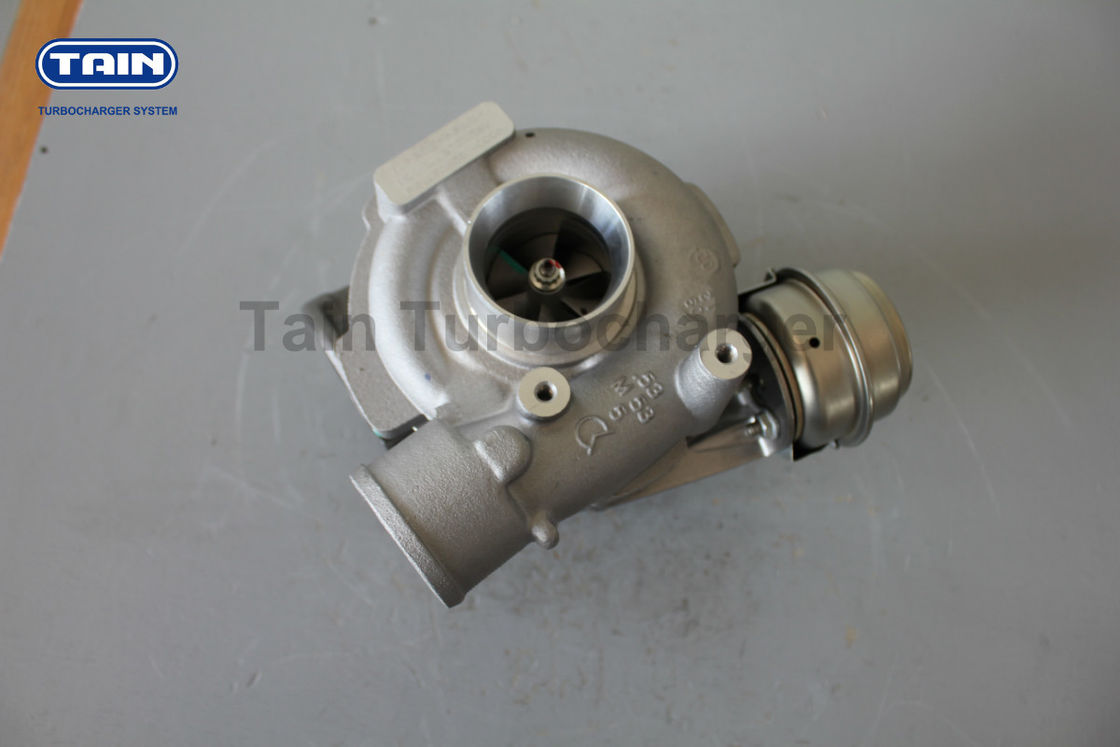

BMW 330 / X5 Complete Turbocharger GT2256V 704361-0004 2248834E 116522499509
♦Model |
GT2256V | |
| ♦Turbo No. | 704361-0004 704361-0005 704361-0006 704361-5006S 704361-5010S |
|
| ♦Chra No. | 434766-0012 |
|
| ♦OE No. | 22499509 / 116522499509 |
|
| ♦Engine Code | M57D E46 |
|
| ♦Vehicle | BMW 330 / X5 |
|
| Turbo No. | Application | Power | OEM | Engine Code |
| 704361 | BMW 330 | 2.9LD 181HP | 22499509 | M57D |
| BMW X5 | 3.0LD 184HP | 22499509 | M57D |
♦Turbine wheels & compressor wheels size information
| Turbine Wheels | ||
| (A) Inducer | (B) Exducer | Blades |
| 42.7 | 50 | 9 |
| Compressor Wheels | ||
| (A) Inducer | (B) Exducer | Blades |
| 31 | 41.5 | 6/6 |
♦ Condition
This is a high quality brand new turbocharger.
Its center core assembly is balancing tested by SCHENCK TB-Sonio with a qualified report.
It is carefully tested,without damage and rust.
It is carefully cleaned and safe packed.
SPEAR PARTS BOM
| Compressor Wheels | Turbine Wheels | Chra No. |
| 436563-0001 | 434882-0003 | 434766-0012 |
| Beraing Housing | Back Plate | Heat Sheild |
| 700967-1007 | 434820-0003 | 443768-0003 |
| Turbine Housing | Actuator | Nozzing ring |
| 705815-0004 | 434855-0033 | 700968-0004 |
| Cartridge Calibration Date | ||
| 140000 RPM<0.5G unblance weight<50mg.mm | ||
DIMENSION
Compressor Wheels 436563-0001
| blade | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) |
| 6/6 | 41.5 | 56 | 4.6 | 31 | 5.08 |
Shaft&Wheels 434882-0003
| blade | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) |
| 9 | 50 | 42.7 | 7.8 | 7.88 | 5.08 |
Spear Parts Material
| Turbine wheel | K418 | |
| Turbine shaft | 42CrMo | |
| Compressor wheel | C355(Aluminum casting) | |
| Bearing house | HT250(Gary iron) | |
| Journal bearing | CW713R | |
| Thrust bearing | Brass bar | |
| Thrust collar & spacer | 42CrMo | |
1995 - Tain turbo was established , covers an area of 4,000 square meters,owns
complete production lines for compressor wheel,compressor housing,and turbo shafts.
2005 - Tain applied advanced PLC-6 low-pressure casting equipment.
2010 - Tain set up foreign trade department,specialized in exporting turbochargers,cartridges and other turbo parts,like shafts,compressor wheels,repair kits,ect.
2010 – Tain cooperated with several big dealers and distributers from German ,and develop a variety of VNT turbocharger.
2012 – Tain entered the south America market,and won a good reputation for our good quality,complete product chain and sincere service.
2015 - Tain applied SCHENCK TB Sonio-core assembly balancing equipment,and other testing equipments to establish a final product quality assurance system.
2017 – Tain imported a 5-axis equipment – MAKINO L2. We have a production line of billet compressor wheels now.
