| Place of Origin | China |
| Brand Name | Tain turbo |
| Certification | ISO 9001-2000 |
| Model Number | GT1749V |
PRODUCT DESCRIPTION

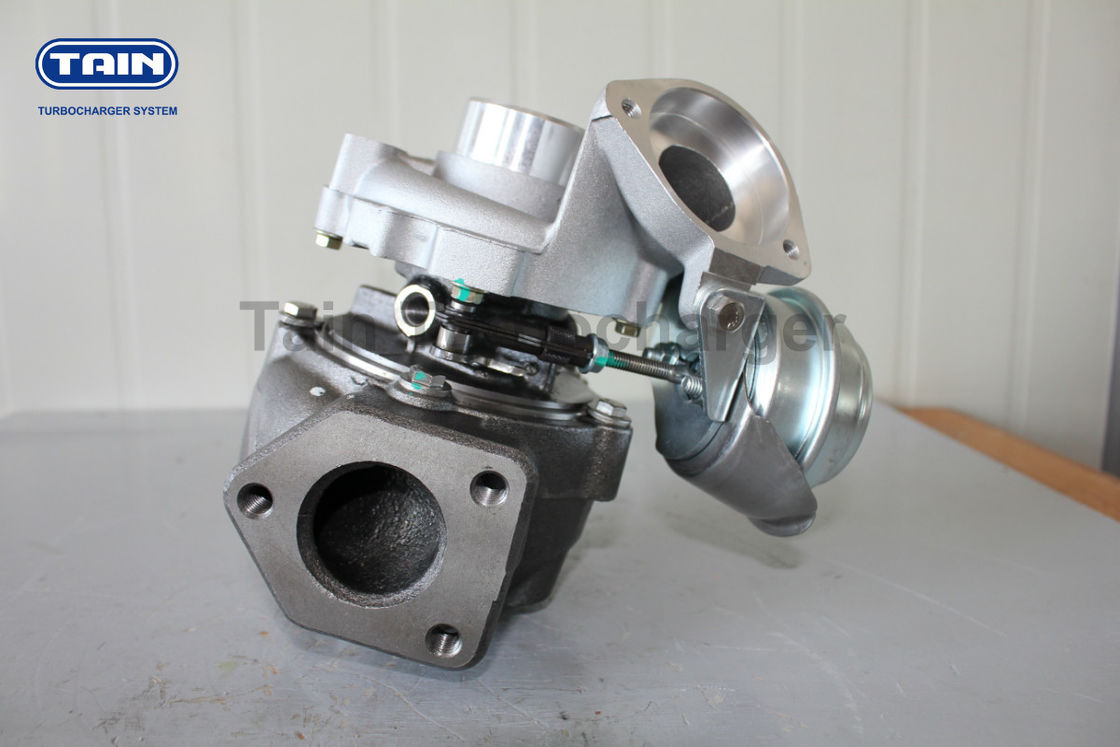

BMW 320d Complete Turbocharger GT1749V 717478-0001 7794144E03 M47TU OL
| GT1749V | |
| Turbo No. | | |
| 703890-0121 | |
| 7794144E03 7787626 11657794144 | |
| BMW 320 | |
| M47TU OL | |
| Material | | |
| <0.5Mg.mm / 150000RPM | |
APPLICATION
| Turbo No. | Application | Power | OEM | Engine Code |
| 750431 | BMW 320 | 2.0LD 110KW | 7787626 | M47TU OL |
SPEAR PARTS BOM
| Compressor Wheels | Turbine Wheels | Chra No. |
| 702489-0001 | 717904-0001 | 703890-0121 |
| Beraing Housing | Back Plate | Heat Sheild |
| 722282-0045 | 700593-0006 | 433112-0001 |
| Turbine Housing | Actuator | |
| 715778-0001 | 433112-0001 | |
| Cartridge Calibration Date | ||
| 140000 RPM<0.5G unblance weight<50mg.mm | ||
DIMENSION
Compressor Wheels 702489-0001
| blade | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) |
| 6/6 | 36.3 | 49 | 4 | 25 | 5.08 |
Shaft&Wheels 717904-0001
| blade | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) |
| 9 | 43 | 39.5 | 8.2 | 7.88 | 5.08 |
Spear Parts Material
| Turbine wheel | K418 | |
| Turbine shaft | 42CrMo | |
| Compressor wheel | C355(Aluminum casting) | |
| Bearing house | HT250(Gary iron) | |
| Journal bearing | CW713R | |
| Thrust bearing | Brass bar | |
| Thrust collar & spacer | 42CrMo | |
PRODUCT SHOW
MHI: TC04,TC06,TD02,TD03,TD04,TD05,TD06,TF035
Toyota: CT9,CT12,CT12B,CT16,CT20,CT20B,CT26
