| Place of Origin | China |
| Brand Name | Tain turbo |
| Certification | ISO 9001-2000 |
| Model Number | GT1544V |

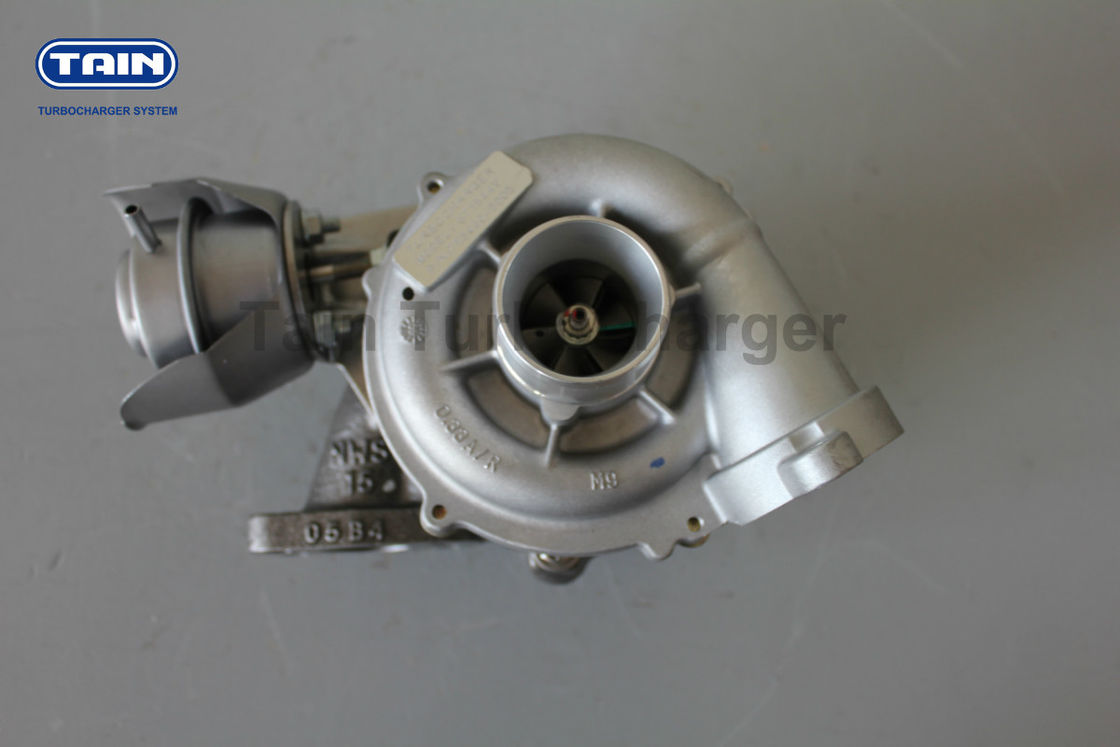

GT1544V 753420-5003 753420-5006S Complete Turbo fit Citroen / Peugeot 1.6L Oil Cooling OEM 0375J3 9660641380
PRODUCT APPLICATION DETAILS
| Part Number | 753420-5003 |
| OEM No. | 0375J3 375J3 9660641380 9663199280 9657248680 3M5Q6K582AC 3M5Q6K582AE 1319614 1340133 1465162 1479055 3M5Q6K582AZ 1479055 1789074 9650764480 9651839880 |
| Year | 2003 |
| Application Engine | DV6TED4 Euro 4 DPF |
| Application Car |
Citroen C3 V70 Peugeot 307 Mazda 3 |
| Power | 80KW |
| CC | 1.6L |
| Cooling mode | Oil Cooling |
SPEAR PARTS BOM
| Compressor Wheels | Turbine Wheels | Chra No. |
| 737683-0003 | 708450-0004 | 753420-0002 |
| Beraing Housing | Back Plate | Heat Sheild |
| 753420-0002 | 753420-0002 | 750030-0001 |
| Acutator | ||
| 737348-0003 |
CALIBRATION DATE
BALANCE DATE: 150000RPM<0.5g UNBALANCED WEIGHT <50mgmm
wastegate calibration date:-0.2- -0.57
DIMENSION
Compressor Wheels 737683-0003
| Blade | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) |
| 6/6 | 31.1 | 44 | 3.7 | 24 | 5.08 |
Shaft&Wheels 708450-0004
| Blade | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) |
| 11 | 39 | 33.1 | 5.5 | 6.5 | 5.08 |
Spear Parts Material
| Turbine wheel | K418 | |
| Turbine shaft | 42CrMo | |
| Compressor wheel | C355(Aluminum casting) | |
| Bearing house | HT250(Gary iron) | |
| Journal bearing | CW713R | |
| Thrust bearing | Brass bar | |
| Thrust collar & spacer | 42CrMo | |
QUALITY CONTRAL
We make sure of every chra is balancing tested by SCHENCK TB Sonio before delivered,
to ensure the best performance of high-speed balancing.And we offer report for each char.
G3 flow instrument can test the ratio and speed of turbocharger,adjust the structure of
variable cross sectionaccording to the flow rate at the same time.It simulate the working
enviroment inside the car, testing theperformance of compressor part,and see if there's
leakage of oil.
We use a set of SCHENCK balancing equipments including compressor wheel balancing equipment,shaft balancing equipment and SCHENCK TB Sonio,which help us to ensure the quality.
Professional in turbochargers and years of experience.
Competitive price because of our good cost control.
Strictly control the production flow to ensure the on-time delivery.
Complete product chain system,to meet customers’ different demands.
3D sample to help customers develop new products.
12 months warranty and aftersalses testing
Customized OEM products,offer flexible ways of packing to meet customers’ requirement
Technology updates and equipment service
