| Place of Origin | China |
| Brand Name | Tain turbo |
| Certification | ISO 9001-2000 |
| Model Number | K03 |
PRODUCT DESCRIPTION

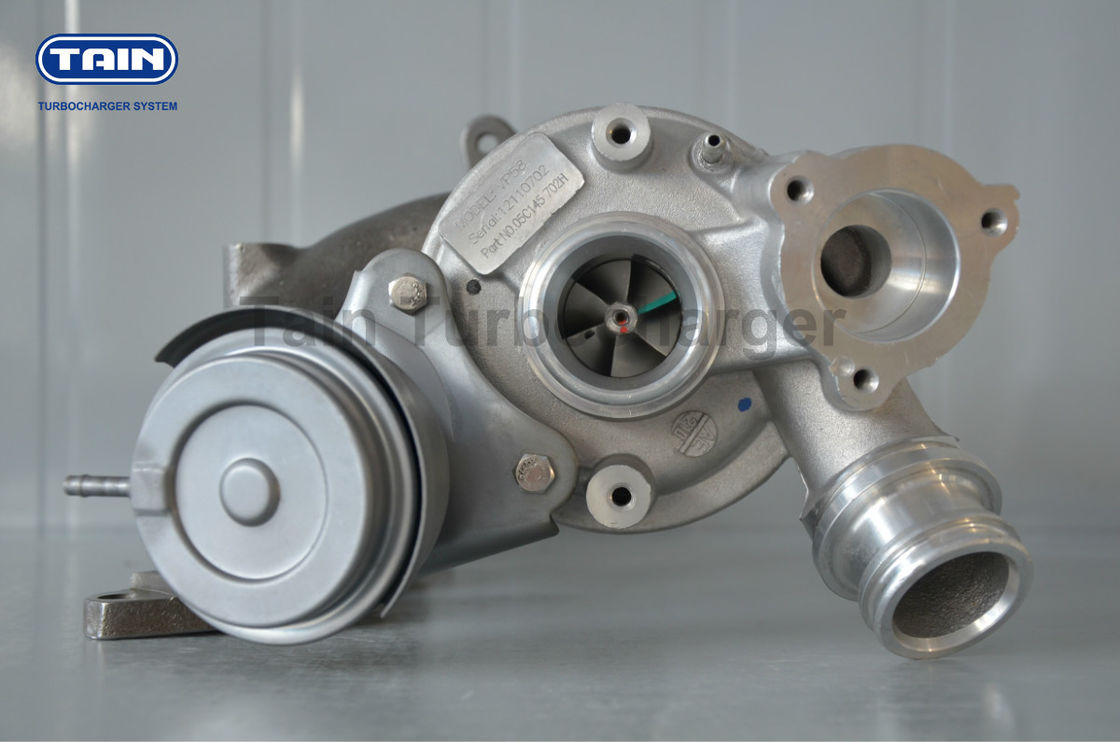

KKK Complete Turbo fit Volkswagen Golf K03 53039880248 53039880099 03C145702P
Application Car:Volkswagen Golf GT 1.4T / POlO 1.4T
Application Engine: BLG/BMY/CAVE
Power :1.4L 125KW
Model: K03
PN:53039700162 53039700248 53039700099
53039880162 53039880248 53039880099
OEM:03C145702P 03C145702PX 03C145702V
PRODUCT APPLICATION DETAILS
| Application Car | CC | Power | Year | Engine | vehicle | Oem No. | PN No. |
| Golf GT / Tiguan | 1.4L | 125kW | 2008 | BWK - CAVA | Turismos / Monovolumen / Furgonetas / 4X4 | 03C145701T | 53039880248 |
| Golf GT / Tiguan | 1.4L | 125kW | 2008 | BWK - CAVA | Turismos / Monovolumen / Furgonetas / 4X4 | 03C145702B | 53039880248 |
| Golf GT / Tiguan | 1.4L | 125kW | 2008 | BWK - CAVA | Turismos / Monovolumen / Furgonetas / 4X4 | 03C145701K | 53039880248 |
| Golf GT / Tiguan | 1.4L | 125kW | 2008 | BWK - CAVA | Turismos / Monovolumen / Furgonetas / 4X4 | 03C145701Q | 53039880248 |
| Golf GT / Tiguan | 1.4L | 125kW | 2008 | BWK - CAVA | Turismos / Monovolumen / Furgonetas / 4X4 | 03C145701G | 53039880248 |
| Golf GT / Tiguan | 1.4L | 125kW | 2008 | BWK - CAVA | Turismos / Monovolumen / Furgonetas / 4X4 | 03C145702P | 53039880248 |
| Golf GT / Tiguan | 1.4L | 125kW | 2008 | BWK - CAVA | Turismos / Monovolumen / Furgonetas / 4X4 | 03C145701B | 53039880248 |
| Golf GT | 1.4L | 125kW | 2011 | 1.4TSI | Turismos / Monovolumen / Furgonetas / 4X4 | 03C145702P | 53039880248 |
| Golf GT / Tiguan | 1.4L | 125kW | 2008 | BWK - CAVA | Turismos / Monovolumen / Furgonetas / 4X4 | 03C145701T | 53039880459 |
| Golf GT / Tiguan | 1.4L | 125kW | 2008 | BWK - CAVA | Turismos / Monovolumen / Furgonetas / 4X4 | 03C145702B | 53039880459 |
| Golf GT / Tiguan | 1.4L | 125kW | 2008 | BWK - CAVA | Turismos / Monovolumen / Furgonetas / 4X4 | 03C145701K | 53039880459 |
| Golf GT / Tiguan | 1.4L | 125kW | 2008 | BWK - CAVA | Turismos / Monovolumen / Furgonetas / 4X4 | 03C145701Q | 53039880459 |
| Golf GT / Tiguan | 1.4L | 125kW | 2008 | BWK - CAVA | Turismos / Monovolumen / Furgonetas / 4X4 | 03C145701G | 53039880459 |
| Golf GT / Tiguan | 1.4L | 125kW | 2008 | BWK - CAVA | Turismos / Monovolumen / Furgonetas / 4X4 | 03C145702P | 53039880459 |
| Golf GT / Tiguan | 1.4L | 125kW | 2008 | BWK - CAVA | Turismos / Monovolumen / Furgonetas / 4X4 | 03C145701B | 53039880459 |
| Golf GT / Tiguan | 1.4L | 125kW | 2008 | BWK - CAVA | Turismos / Monovolumen / Furgonetas / 4X4 | 03C145703A | 53039880459 |
SPEAR PARTS BOM
| Compressor Wheels | Turbine Wheels | Chra No. |
| 53041232209 | 53031206506 | 53037100524 |
| Beraing Housing | Back Plate | Heat Sheild |
| 53031500020 | 53041515717 | 53031652015 |
| Turbine Housing | ||
| 53031009560 | ||
| Cartridge Calibration Date | ||
| 140000 RPM<0.5G unblance weight<50mg.mm | ||
DIMENSION
Compressor Wheels 53041232209
| WEIGHT(kg) | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) |
| 0.05Kgs | 37.8 | 51/52.8 | 4 | 25.6 | 4.6 |
Shaft&Wheels 53031206506
| WEIGHT(kg) | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) |
| 0.15Kgs | 43 | 38.3 | 7 | 7 | 4.6 |
Spear Parts Material
| Turbine wheel | K418 | |
| Turbine shaft | 42CrMo | |
| Compressor wheel | C355(Aluminum casting) | |
| Bearing house | HT250(Gary iron) | |
| Journal bearing | CW713R | |
| Thrust bearing | Brass bar | |
| Thrust collar & spacer | 42CrMo | |
WHAT WE SUPPLY
Tain supplies high performance turbo cartridges(CHRAS) and turbo kits to aftermarket worldwide.
Originally manufactured by Honeywell(Garrett),Borg Warner(KKK),MHI(Mitsubishi), IHI, Toyota, Holset.
Model cover :
Garrett: GT12,GT14,GT15-25,GT35,GT37,GT42,T2,T3,T04B-E
KKK: K03,K04,K14,K16,K24,K27,KP35,BV39,BV40,BV45,BV50
Schwitzer: S100,S1A,S1B,S200,S2A,S2B-E,S300,S3A,S3B,S400,S410
Holset: HX30(W),HX35(W),HX40(W),HX50(W),HX55(W),HE211(W),HE35V,HE40V,HE55V
IHI: RHB3,RHF3,RHF4,RHF5,
MHI: TC04,TC06,TD02,TD03,TD04,TD05,TD06,TF035
Toyota: CT9,CT12,CT12B,CT16,CT20,CT20B,CT26
