Turbocharger Nozzle Ring
>
|
| Place of Origin | China |
| Brand Name | Tain Turbo |
| Model Number | K04 |

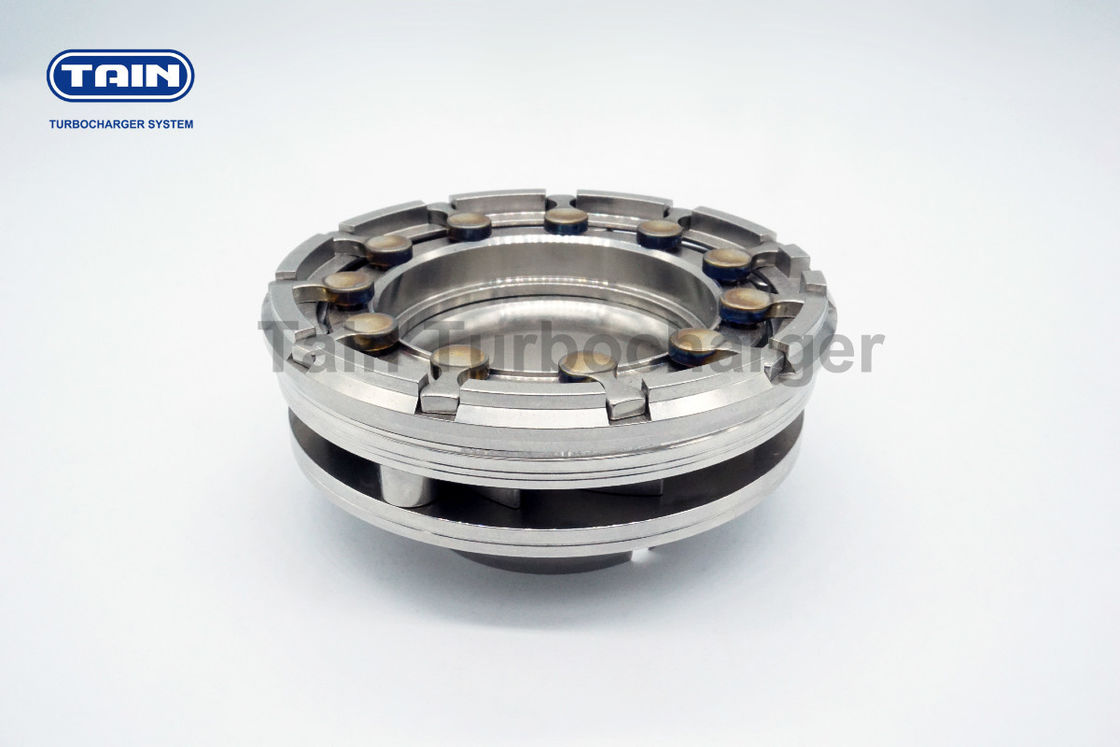

KKK K04 53049700035 53049700043 53049700045 Audi / Volkswagen Turbocharger Nozzle ring
PRODUCT DESCRIPTION
► TURBO NOZZLE RING
The existence of the nozzle ring aims at accelerating and guiding the exhaust flow to the desired angle to
the turbine wheel, with the minimum possible losses. Poor fuel quality, in combination with the high
exhaust temperatures reduces the estimated life of the part, which has a direct impact on the proper
operation of the turbochargerintake when the rpm of the engine changes.
|
► Model
|
K04 |
|
►TURBO NO . |
53049700035 53049700043 53049700045
53049700050 53049700054
|
|
►Engine NO.
|
059145715F / 059145702S / 059145702M |
|
►APPLICATION |
Audi A4 3.0 TDI
Audi A6 3.0 TDI
Audi A8 3.0 TDI
Audi Q7 3.0 TDI
Volkswagen Marine 3.0 TDI
Volkswagen Phaeton 3.0 TDI
Volkswagen Tuareg 3.0 TDI
|
|
► Material |
K418 |
|
Garrett |
||
| 1000-047-003 | 753420-0002,740611-0003,717505-0016 | GT1544V |
| 1000-047-010 | 700960-0011,758870-0001 | GT1444V |
| 1000-049-001 | 708639-0010,715294-0001,716213-0001,716215-0001, 716419-0002,717858-0001, 751851-0003, | GT1646U GT1749V |
| 1000-049-004 | 750431-0006 | GT1749V |
| 1000-049-006 | 709836-0001,717478-0001,742693-0001,753556-0002,765015-0004 | GT1852V GT1749V GT1849V |
| 1000-049-009 | 755042-0002,764609-0001,773720-0001,755373-0001,767835-0001 | GT1749V |
| 1000-049-010 | 775274-0002,792290 | GTB1444VZ |
| 1000-049-011 | 727210-0001 | GT1749V |
| 1000-049-012 | 773087-0002 | GTA1549V |
| 1000-049-014 | 775517-0001,806291-0002 | GTC1244VZ |
| 1000-049-018 | 803955-0003 | GTC1446VMZ |
| 1000-049-033 | 454161-0001,701855-0005,708366-0001,713672-0001,454232-0001 | GT1544V GT1549V GT1749V |
| 1000-049-040 | 731877-0001 | GT1749V |
| 1000-051-001 | 759688-0005,762965-0017,760699,797001-0001 | GT1749V |
| 1000-051-003 | 742110,756867,765261,762463,757886-0003,760698-0001,787274-0001 | GTB1649V GT1746V GT1752V |
| 1000-051-005 | 767378-0010,752990-0006,769701-0001,787556-0001 | GT1749V GTB1756V GT1752V |
| 1000-057-001 | 724639-0001,763360-0001,720931-0001,454135-0005, 769708 | GT2052V GT2056V GT2256V |
| 1000-057-003 | 752610-0015 | GTA2052V |
| 1000-057-006 | 454191-0003,454205-0006,704361-0004,751758-5001 | GT2052V GT2256V |
| 1000-057-007 | 454135-0001 | GT2052V |
| 1000-057-008 | 725364-0004,753392-0018, 742417,742730,773098 | GT2260V |
| 1000-057-018 | 454191-0015 | GT2556V |
| 1000-057-021 | 454150-0004 | TD2503 |
| 1000-059-002 | 758351-0015 | GT2260V |
| 1000-059-003 | 769909-0010 | GTB2260V |
| 1000-059-004 | 781743-0003,777318-0001,812971-0002 | GTB2056V |
| 1000-095-001 | 758160-0007 | GTA4502V |
|
Toyota |
||
| 2000-058-001 | 17201-OL040,17201-30010 | CT16/CT20 |
|
KKK |
||
| 5000-044-001 | 54399700029 54399700048 | BV39 |
| 5000-044-002 | 54399700054 | BV39 |
| 5000-044-004 | 54399700016 54399700047 | BV39 |
| 5000-044-005 | 54399700020 54399700022 | BV39 |
| 5000-044-007 | 54399700027 54399700030 | BV39 |
| 5000-044-008 | 54399700057 54399700072 | BV39B |
| 5000-044-009 | 54399700005 54399700011 | BV39 |
| 5000-044-011 | 54359700014 | KP35 |
| 5000-049-001 | 53039700122 53039700132 53039700133 53039700140 | BV43 |
| 5000-049-002 | 53039700109 | BV43 |
| 5000-051-001 | 54399700076 54399700098 | BV39F |
| 5000-056-001 | 53049700032 | K04VGT |
| 5000-056-003 | 53049700055 53049700069 | BV50 |
| 5000-056-004 | 53049700052 | BV50 |
| 5000-056-005 | 53049700054 53049700055 53049700063 | BV50 |
| 5000-056-006 | 53049700035 53049700043 53049700045 53049700050 53049700054 | K04 |
| 5000-056-007 | 53039700262 | BV45 |
|
MHI |
||
| 6000-036-001 | 49131-06003,49131-06004,49131-06006, 49131-06007,49131-06008 | TD03L |
| 6000-038-001 | 49135-02652 | TF065HL |
| 6000-047-001 | 49135-05880,49135-05895,49135-05860 | TF035HL |
| 6000-047-002 | 49135-05640,49135-05670, 49135-05660,49135-05671 | TF035HL |
| 6000-047-003 | 49135-07310,49135-07311, 49135-07312,28231-27810 | TF035 |
| 6000-047-005 | 28231-27800,49135-07100 | TF035 |
| 6000-053-001 | 49377-07515,49377-07440 | TD04L-13T-VG |
| 6000-053-002 | 49377-00510,49377-00500 | TD04L-12T2-VG |
| 6000-053-003 | 49377-07423 | TD04L |
| IHI | ||
| 7000-030-001 | VVP2 | RHF3V |
| 7000-039-001 | VJ32 VIA10019 | RHF4V |
| 7000-039-002 | VJ30 | RHF4V |
| 7000-041-003 | VB13,VB15 | RHF4V |
| 7000-041-002 | VV14 VF40A132 | RHF4V |
| 7000-041-004 | BV30 | RHF4V |
| 7000-046-001 | VJ36 VHA20012 | RHV4 |
| 7000-046-003 | 54359700027 | BV35 |
| 7000-046-004 | VJ40,VJ41 VNT | RHV4 |
| 7000-046-005 | VV19 AL0044 VJ38 | RHF4 |
| 7000-054-001 | VT13,221550 | RHV5 |
| Holset | ||
| 8000-041-001 | 707240-0001 | GT1549P |
| 8000-077-001 | 4045934 4047231 4046928 | HY40V HE431V |
| 8000-088-003 | 4046945 4043226 | HY55V HE551V |
| 8000-088-005 | 3597276 4046943 4036283 4038393 | HY55V |
PRODUCT SHOW
Our technical team was composed by one advanced engineer with 15 years experience and four
engineers who are very professional in this field. They are familiar with turbocharger system and
product structure and dimension.
They are mainly responsible for source selection,quality control,dimension inspection and product
development.Thanks to them,currently we can supply over 300 types of turbo chras and always keep
our producs quality in a high level.
